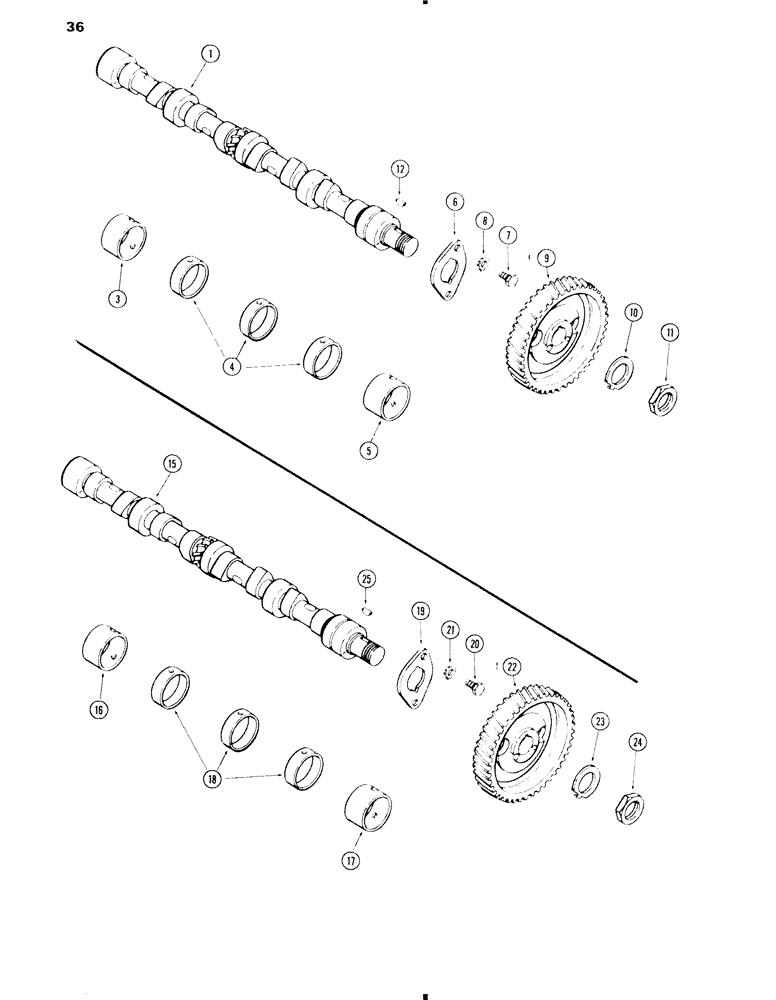

Запчасти Case 584C (036) - CAMSHAFT, 207 DIESEL ENGINE, ENGINE SERIAL NO. 2850355 AND AFTER, PRIOR TO ENGINE SERIAL NO 2850355 (10) - ENGINE

1

A153521

CAMSHAFT

- engine (Replaces A39013)

1шт.

3

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

- rear, 1" wide (25.4 mm) with two oil holes

1шт.

4

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING - intermediate, 1/2" wide (12.7 mm) with one oil hole

3шт.

5

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

- front, 1-1/4" wide (31.75 mm) with two oil holes

1шт.

6

A29290

PLATE

- thrust, camshaft

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

A38931

GEAR

- camshaft

1шт.

10

A29438

LOCK NUT

WASHER - lock, camshaft nut (tab type)

1шт.

11

A30063

NUT

- camshaft gear retaining

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

15

A39013

CAM

SHAFT

1шт.

16

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

- rear, 1" wide (25.4 mm) with two oil holes

1шт.

17

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

- front, 1-1/4" wide (31.75 mm) with two oil holes

1шт.

18

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING - intermediate, 1/2" wide (12.7 mm) with one oil hole

3шт.

19

A29290

PLATE

- thrust, camshaft

1шт.

20

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

22

A38931

GEAR

- camshaft

1шт.

23

A29438

LOCK NUT

WASHER - lock, camshaft nut (tab type)

1шт.

24

A30063

NUT

- camshaft gear retaining

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.
