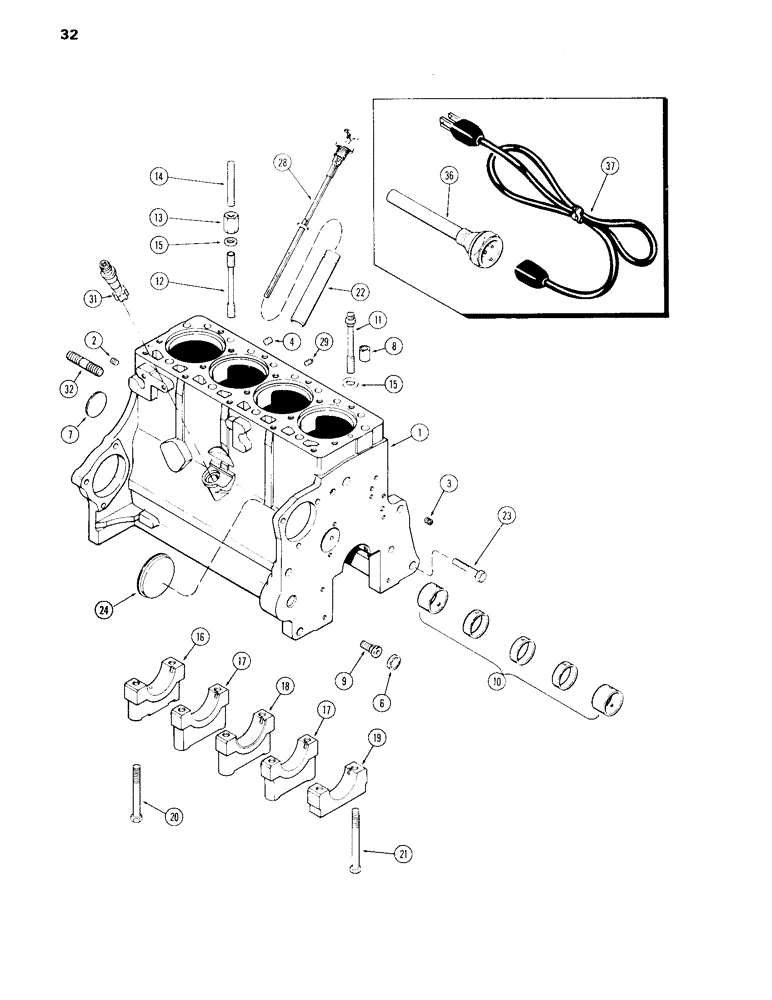

Запчасти Case 584C (032) - CYLINDER BLOCK, 207 DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO 2850355, BLOCK HEATER (10) - ENGINE

A46037

SHORT ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears) (Order A46350), Includes: Ref. 1 - 24

1шт.

1

A44702

BLOCK

ASSEMBLY - stripped (Casting No. A136813) (Order A46351), Includes: Ref. 2 - 24

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery, Rear Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

- oil gallery, front, 1/4" PT drilled head

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" PT, socket head

1шт.

6

41-1016

PLUG,Cup, 1"

- adapter hole, 1" cup type (25.4 mm)

1шт.

7

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" expansion (54 mm)

1шт.

8

G49608

RING

- dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filler

1шт.

10

REF

INSTRUCTION

BUSHING - camshaft, See Figure 36

1шт.

11

A39047

12 PT SCREW

BOLT - cylinder head, 1/2 x 3-1/2" NC, 12 point head

4шт.

11

A39048

12 PT SCREW

BOLT - cylinder head, 1/2 x 5-1/8" NC, 12 point head

11шт.

11

A39049

12 PT SCREW

BOLT - cylinder head, 1/2 x 5-5/8" NC, 12 point head

2шт.

12

A36902

STUD

- cylinder head, 1/2" NC x 5-5/8"

2шт.

13

A51114

NUT

- cylinder head studs, 1/2" NC and 3/8" NC

2шт.

14

A51271

STUD

- cylinder head cover, 3/8" NC x 3-3/4"

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

19шт.

16

A38385

CAP

- main bearing, rear (Replaces A51057)

1шт.

17

G2128

CAP

- main bearing, intermediate (Replaces A51055)

2шт.

18

G2127

CAP

- main bearing, center (Replaces A51056)

1шт.

19

G2126

CAP

- main bearing, front (Replaces A51054)

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps, 1/2 x 4-1/2" NC hex

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front bearing cap, 1/2 x 5-1/8" NC hex

2шт.

22

A37149

TUBE

- oil filler and dipstick

1шт.

23

A38303

BOLT

BOLT - front support, 5/8 x 3-3/16" NC hex

1шт.

24

A29268

PLUG

COVER - auxiliary drive opening, 3-1/2" cup type (93.9 mm)

1шт.

28

A39936

DIPSTICK

- oil level (Turn-tite type)

1шт.

29

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cylinder block, 1/4" PT square head

1шт.

31

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

32

A51793

STUD

- 5/8" NF x 3-3/16"

2шт.

36

A44815

HEATER

ASSEMBLY - block., Includes: Ref. 37

1шт.

37

A44814

ELECTRIC CABLE

CORD - heater, 12" long (304.8 mm)

1шт.
