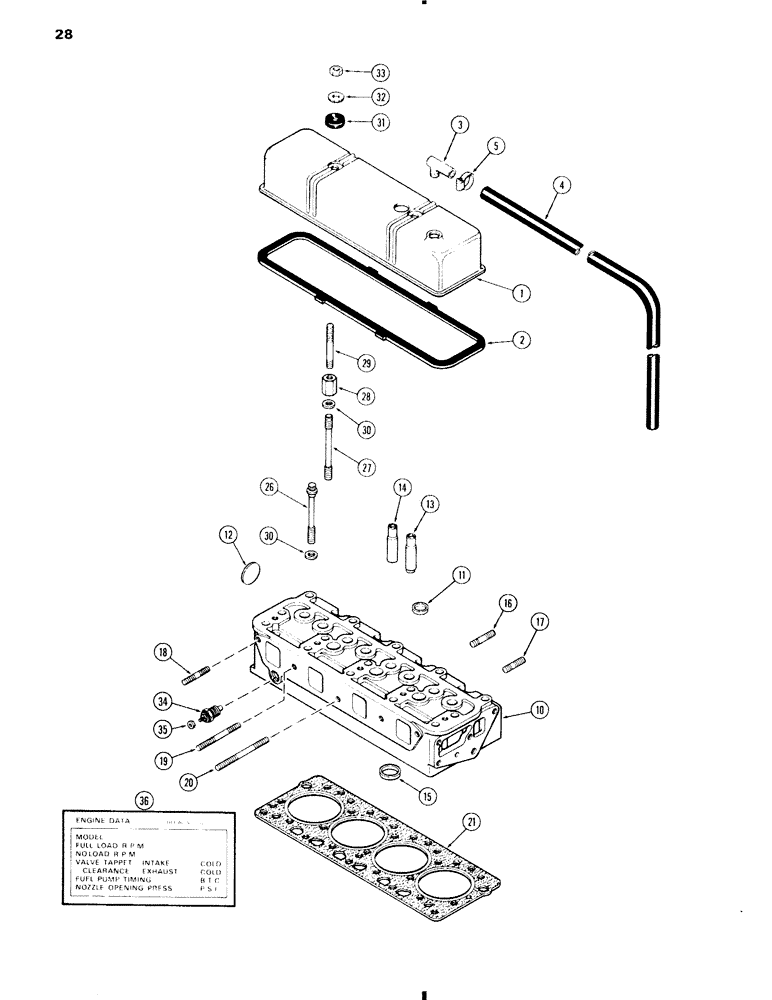

Запчасти Case 584C (028) - CYLINDER HEAD AND COVER, 207 DIESEL ENGINE (10) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

4

A39570

HOSE

HOSE - breather tube (rubber)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose to elbow, 9/16" to 1-1/16" (14.29 to 27 mm)

1шт.

10

A153261

CYLINDER BLOCK

HEAD ASSEMBLY - cylinder (Casting No. A150384)(Replaces A150385), Includes: Ref. 11 - 20

1шт.

11

41-1016

PLUG,Cup, 1"

- top, 1" cup type (25.4 mm)

3шт.

12

41-1028

PLUG,Cup, 1 3/4"

- rear, 1-3/4" cup type (44.45 mm)

1шт.

13

A152489

GUIDE

- exhaust valve, 3-1/8" long (79.38 mm)(Replaces G2069)

4шт.

14

A152488

GUIDE

- intake valve, 3-1/4" long (82.55 mm)(Replaces G2068)

4шт.

15

G47078

INSERT - exhaust valve seat (Order A39268)

4шт.

16

A39129

STUD

- exhaust manifold, clamps, 3/8" NC x 2-1/16"

3шт.

17

A29431

STUD

- exhaust manifold, ends, 3/8" NC x 1-3/4"

2шт.

18

A140924

STUD

- intake manifold, ends, 3/8" NC x 2-7/16"

2шт.

19

A153248

STUD

- intake manifold, intermediate, 3/8" NC x 4-13/16"

2шт.

20

A51500

STUD

- intake manifold, center, 3/8" NC x 5-5/16"

1шт.

21

A148745

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

26

A39047

12 PT SCREW

BOLT - head to block, 1/2 x 3-1/2" NC 12 point head

4шт.

26

A39048

12 PT SCREW

BOLT - head to block, 1/2 x 5-1/8" NC 12 point head

11шт.

26

A39049

12 PT SCREW

BOLT - head to block, 1/2 x 5-5/8" NC 12 point head

2шт.

27

A36902

STUD

- cylinder head, 1/2" NC x 5-5/8"

2шт.

28

A51114

NUT

- head studs, 1/2" NC and 3/8" NC

2шт.

29

A51271

STUD

- cylinder head cover, 3/8" NC x 3-3/4"

2шт.

30

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

19шт.

31

A142098

GROMMET

- cover (rubber)

2шт.

32

195-137

WASHER,13/32" x 1 1/8" x .180"

- cover nut, 13/32 x 1-1/8 x 3/16" (10.32 x 28.58 x 4.76 mm)

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Cover 3/8"-16, G5

2шт.

34

D65446

SENDER UNIT

UNIT - temperature sending

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- unit terminal, No. 10 NF hex

1шт.
