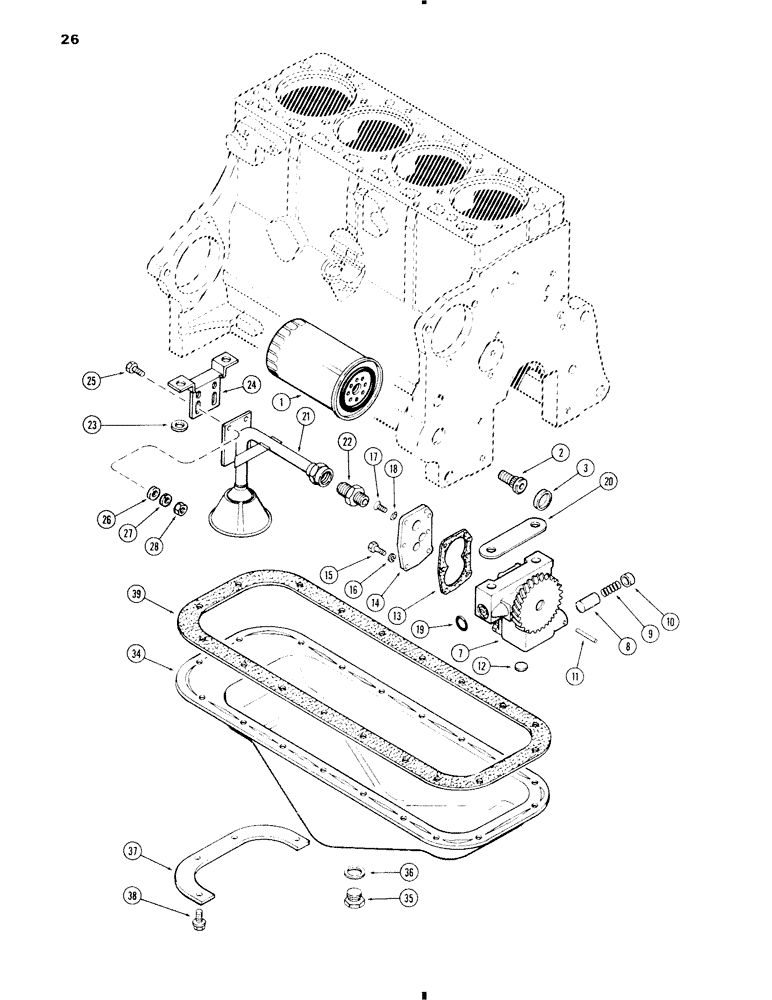

Запчасти Case 584C (026) - OIL FILTER, 207 DIESEL ENGINE, OIL PUMP, WITH FIXED TYPE OIL SCREEN, OIL PAN (10) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - engine oil

1шт.

2

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter hole, 1" cup type (25.4 mm)

1шт.

7

A38372

PUMP

PUMP ASSEMBLY - engine oil, Includes: Ref. 8 - 18

1шт.

7

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

7

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

8

A155144

VALVE, PRESSURE RELI

EF VALVE - relief (Replaces A29279)

1шт.

9

G48500

SPRING

SPRING - relief valve, 2-1/8" free length (53.98 mm)

1шт.

10

A29260

RETAINER

RETAINER - relief valve spring

1шт.

11

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

12

A39321

PLUG,Cup, 7/16"

PLUG - body, 1/2" cup type (12.7 mm)

1шт.

13

G46852

GASKET

GASKET - pump cover

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8" NC slotted flat head

2шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING - oil port, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

20

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap (0.06 mm) .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap (0.13 mm) .005" Thk

1шт.

21

A156794

FILTER SCREEN

SCREEN ASSEMBLY - oil pump, Includes: Ref. 22

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - 3/8" PT

1шт.

23

G35009

WASHER

WASHER - 17/32 x 1-1/16 x 7/64"

1шт.

(13.49 x 26.99 x 2.77 mm) hardened

2шт.

24

A155169

BRACKET

SPARE PART BRACKET - support

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

26

195-102

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

34

A36782

PAN

PAN ASSEMBLY - oil, Includes: Ref. 35 and 36

1шт.

35

A140222

PLUG

PLUG - drain

1шт.

36

A58608

GASKET

GASKET - drain plug

1шт.

37

A151279

REINFORCEMENT

STRAP - pan reinforcement

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - 5/16 x 3/4" NC hex Sems

14шт.

38

193-552

BOLT

BOLT - 5/16 x 7/8" NC socket hex head

4шт.

39

A51891

OIL PAN GASKET SET

GASKET - oil pan

1шт.
