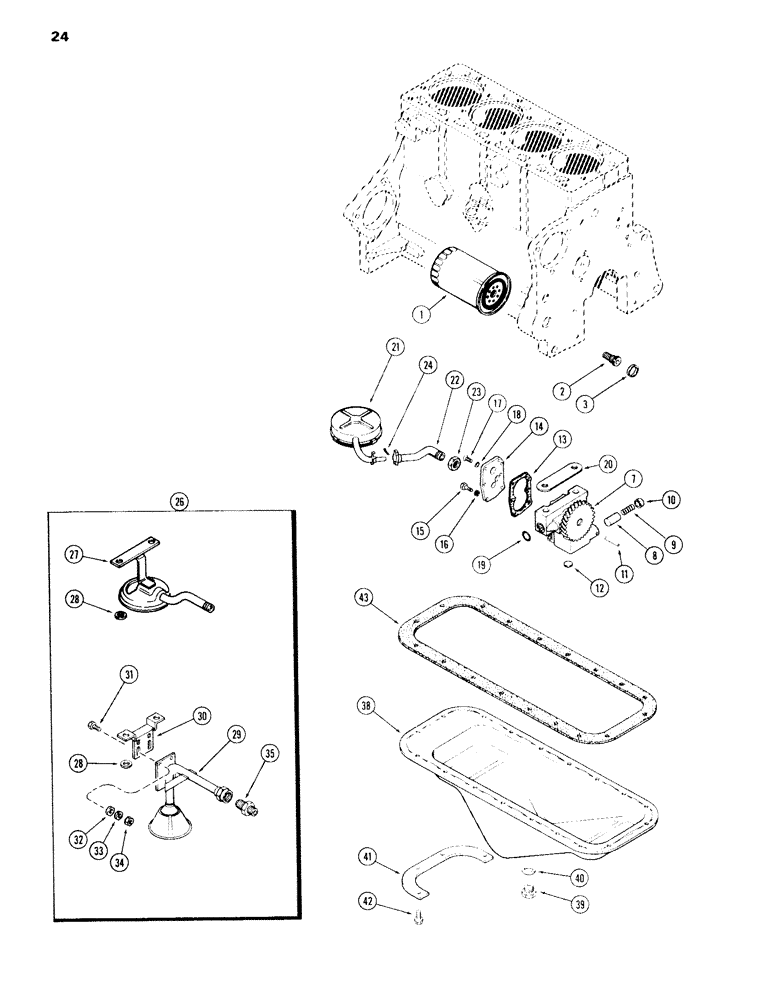

Запчасти Case 584C (024) - OIL FILTER, 207 DIESEL ENGINE, OIL PUMP, WITH FLOAT TYPE OIL SCREEN,OIL PAN (10) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - engine oil

1шт.

2

A153552

ADAPTER

ADAPTER - filter to block (Replaces A37206)

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter hole, 1" cup type (25.4 mm)

1шт.

7

A38372

PUMP

PUMP ASSEMBLY - engine oil, Includes: Ref. 8 - 18

1шт.

7

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

7

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

8

A155144

VALVE, PRESSURE RELI

EF VALVE - relief (Replaces A29279)

1шт.

9

G48500

SPRING

SPRING - relief valve, 2-1/8" free length (53.98 mm)

1шт.

10

A29260

RETAINER

RETAINER - relief valve spring

1шт.

11

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, (3.17 x 28.57 mm) 1/8" x 1 1/8", Slotted

1шт.

12

A39321

PLUG,Cup, 7/16"

PLUG - body, 1/2" cup type (12.7 mm)

1шт.

13

G46852

GASKET

GASKET - pump cover

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8" NC slotted flat head

2шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING - oil port, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

20

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap (0.06 mm) .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap (0.13 mm) .005" Thk

1шт.

21

REF

INSTRUCTION

FLOAT ASSEMBLY - with screen (Order A155221)

1шт.

22

A39035

TUBE

PIPE ASSEMBLY - suction

1шт.

23

223-207

LOCK NUT

NUT -, Serial Range: tube-pump

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (3.17 x 31.75 mm) 1/8" x 1 1/4"

1шт.

26

A155221

KIT

SCREEN KIT - oil pump, Includes: Ref. 27 - 35

1шт.

27

A39896

FILTER SCREEN

SCREEN - oil pump, used with shallow oil pan

1шт.

28

G35009

WASHER

WASHER - bracket to bearing cap, 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.77 mm)

2шт.

29

A156794

FILTER SCREEN

SCREEN - oil pump, used with deep oil pan

1шт.

30

A156845

BRACKET

BRACKET - screen support

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

32

195-102

WASHER,1/4"

WASHER - flat 1/4"

2шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

35

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - straight (37 degree flared)

1шт.

38

A36782

PAN

PAN ASSEMBLY - oil, Includes: Ref. 39 and 40

1шт.

39

A140222

PLUG

PLUG - drain

1шт.

40

A58608

GASKET

GASKET - drain plug

1шт.

41

A151279

REINFORCEMENT

STRAP - pan reinforcement

1шт.

42

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - 5/16 x 3/4" NC hex Sems

14шт.

42

193-552

BOLT

BOLT - 5/16 x 7/8" NC socket hex head

4шт.

43

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A44758, See Figure 42)

1шт.
