Запчасти Case 584C (020) - WATER PUMP, 207 DIESEL ENGINE (10) - ENGINE

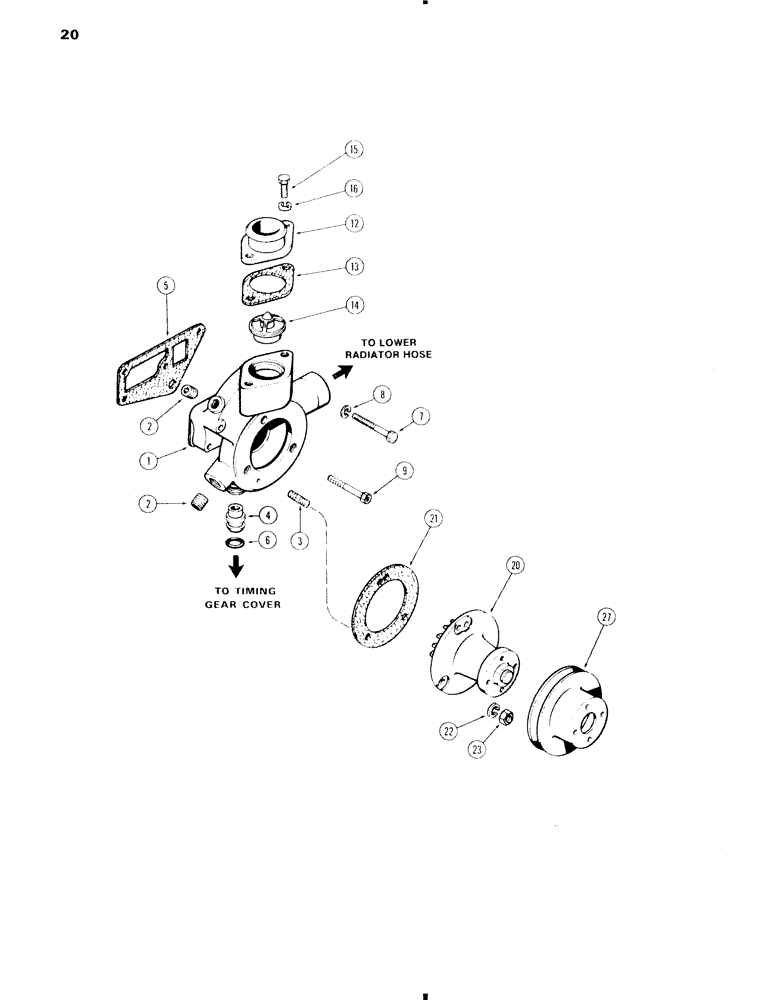

Схема запчастей Case 584C - (020) - WATER PUMP, 207 DIESEL ENGINE (10) - ENGINE
5
14
16
21
9
21
2
1
6
3
23
20
7
22
15
4
8
13
2
12

Артикул

Название

Примечание

Количество

1

A152802

PUMP

BODY ASSEMBLY - water pump (Replaces A139826), Includes: Ref. 2 - 4

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - body, 3/8" PT, socket head

2шт.

3

A29433

STUD

STUD - water pump, 3/8" NC x 1"

3шт.

4

A152715

COUPLING

FITTING - pump to timing gear cover

1шт.

5

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - body fitting to cover, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.18 mm)

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, , Body to cylinder head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, , Body to cylinder head Hex, 3/8"-16 x 3", G5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - body to cylinder head (Inside body)

1шт.

.

3/8 x 2" NC hex socket head

1шт.

12

G2144

FITTING

HOUSING - thermostat to water outlet

1шт.

13

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

14

A57641

THERMOSTAT

THERMOSTAT - 180 degree F; 82 degree C

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 21

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

G11339

PULLEY

PULLEY - fan drive

1шт.

Выбрано товаров: 26
