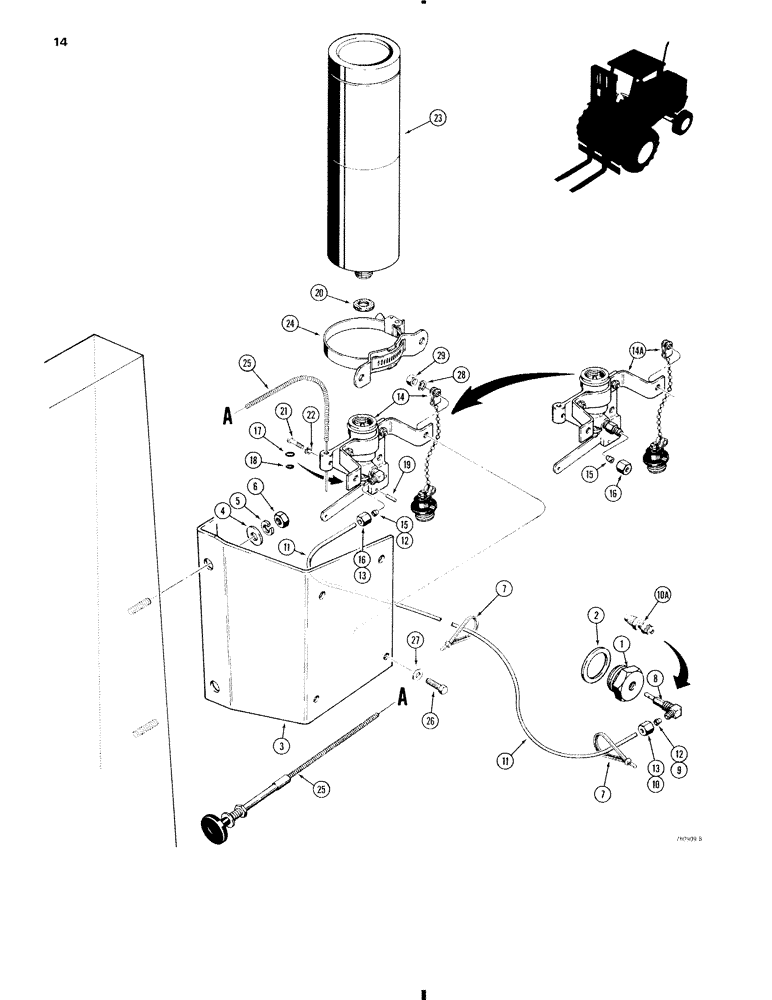

Запчасти Case 584C (014) - COLD START SYSTEM (10) - ENGINE

1

L10283

PLUG

- manifold, used with Ref. 8

1шт.

1

D79761

PLUG

- manifold, used with Ref. 10A

1шт.

2

A20916

MANIFOLD GASKET

WASHER - special

1шт.

3

D70731

BRACKET

- cold start

1шт.

4

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - tube

2шт.

D55946

JET

INJECTOR ASSEMBLY - cold start, 90 degree, used with L10283 manifold plug only, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

INJECTOR - D55946 assembly, 90 degree

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

10a

D81319

NOZZLE INJECTION

INJECTOR ASSEMBLY - cold start, straight, used with D79761 manifold plug only

1шт.

D55947

TUBE

ASSEMBLY - valve to injector, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - valve to injector, 60" (1524 mm) long

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

2шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

2шт.

D55948

VALVE

ASSEMBLY - actuator, with 90 degree elbow, no longer used, order D88743, Includes: Ref. 14 - 22

1шт.

D88743

VALVE

ASSEMBLY - actuator, with straight connector, Includes: Ref. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - actuator, D55948 assembly, with 90 degree elbow

1шт.

14a

NSS

NOT SOLD SEPARAT

VALVE - actuator, D88743 assembly, with straight connector

1шт.

15

222-650

SLEEVE,1/8" Tube, Comp

1шт.

16

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

D55951

REPAIR KIT

KIT - service, valve seal, Includes: Ref. 17 - 20

1шт.

17

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- internal plunger, upper

1шт.

18

A51274

O-RING,0.145" ID x 0.285" OD

- internal plunger, lower

1шт.

19

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, , drive 3/32" x 1/2"

1шт.

20

D74422

GASKET

SEAL - cork, Serial Range: valve-cylinder

1шт.

21

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted, No. 10 - 24 NC x 1/2"

1шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

D55767

CYLINDER

- cold start

1шт.

24

D55949

BRACKET

CLAMP - cylinder

1шт.

25

D55950

CABLE

- cold start control

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

N8826

PLUG

ASSY. chain, 7/8" threads

1шт.
