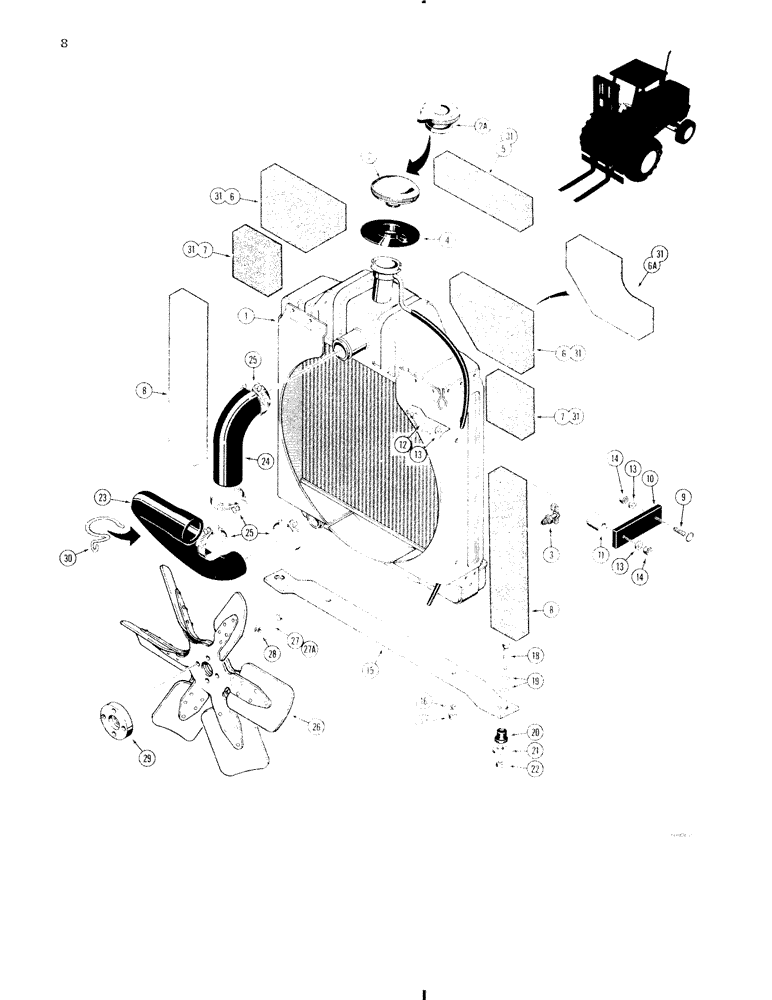

Запчасти Case 584C (008) - RADIATOR, FAN AND MOUNTING PARTS (10) - ENGINE

1

D89103

RADIATOR

- engine, interchangeable with D77843

1шт.

2

A39359

CAP

- radiator, black, dome top

1шт.

2a

NSS

NOT SOLD SEPARAT

CAP - radiator, plain, if used, order A39359

1шт.

3

217-103

COCK, DRAIN

VALVE - water drain

1шт.

4

D69037

GROMMET

- radiator

1шт.

5

D69067

BAFFLE

- radiator, top center, cut from D92228, 9" (229 mm) x 2-1/2" (64 mm)

1шт.

6

D69065

BAFFLE

- radiator, top ends, cut from D92228, 8" (203 mm) x 5-1/2" (140 mm)

1-2шт.

6a

D69064

BAFFLE

- top, left-hand, used on models with air cleaner tube extending

1шт.

toward the grille, if used, cut from D92228, 8" (203 mm) x 5-1/2" (140 mm)

1шт.

7

D69112

BAFFLE

- radiator, side, upper, cut from D92228, 3-13/16" (97 mm) x 4" (102 mm)

2шт.

8

D69113

BAFFLE

- radiator, side, lower, cut from D92228, 16" (406 mm) x 2-11/16" (69 mm)

2шт.

9

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

- 3/8" - 16 NC x 1-1/4"

2шт.

10

D73500

STRAP

- radiator mounting

2шт.

11

F60720

SPACER - radiator mounting strap

2шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

14

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

15

D68839

BAR - radiator mounting

1шт.

16

92-6

LOCK WASHER,3/8"

no longer used, service with 131-6 nut only 3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, no longer used, service with 131-6 nut

2шт.

17

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

2-4шт.

20

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, radiator mounting

2шт.

21

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

2шт.

22

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

23

D68800

HOSE

- radiator, lower

1шт.

24

D68799

RADIATOR HOSE,2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

Upper 2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adjustable #36, 1.81/2.75 Type F Worm

4шт.

26

D93696

FAN

- suction, interchangeable with D86230

1шт.

27

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2", If used

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plated.

1шт.

27a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", if used

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plated.

1шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

D66937

SPACER

- fan

1шт.

30

D82192

SUPPORT

- lower radiator hose, if used, uses timing gear cover hardware

1шт.

31

D92228

BAFFLE

- bulk pad, 55" (1400 mm) x 35-1/2" (900 mm) x 1-1/2" (38 mm)

1шт.
