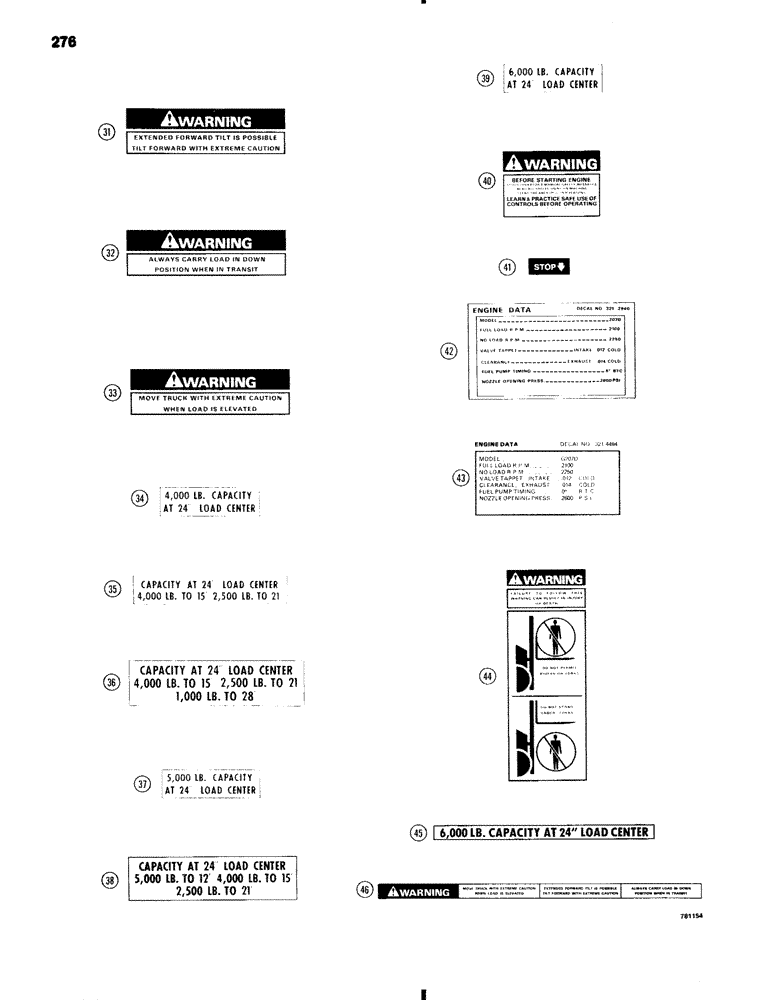

Запчасти Case 584C (276) - DECALS, USED BEFORE SERIAL NUMBER 9000008 (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

KIT - decal, Includes: Ref. 31 - 46 and Ref. 1 - 30 on Figure 274

1шт.

31

321-3159

DECAL

- warning, tilt

1шт.

32

321-3160

DECAL

- warning, transport

1шт.

33

321-3161

DECAL

- warning, load

1шт.

34

D55885

DECAL

- capacity, 584C 10-1/2 foot (3.2 m) and 14-1/4 foot (4.3 m) masts

1шт.

35

D55888

DECAL

- capacity, 584C 21-1/2 foot (6.5 m) mast

1шт.

36

D55889

DECAL

- capacity, 584C 28 foot(8.5 m) mast

1шт.

37

D55886

DECAL

- capacity, 585C 12 foot (3.6 m) and 14-1/4 foot (4.3 m) masts

1шт.

38

321-3358

DECAL

- capacity, 585C 21-1/2 foot (6.5 m) mast

1шт.

39

D55887

DECAL

- capacity, 586C 12 foot (3.6 m) and 14-1/4 foot (4.3 m) masts

1шт.

40

321-3705

DECAL

- safety warning

1шт.

41

321-3579

DECAL

- stop

1шт.

42

321-2940

DECAL

- engine data, on valve cover, used before engine Sn 2835094

1шт.

43

321-4494

DECAL

- engine data, on valve cover, used on engine Sn 2835094 and after

1шт.

44

D83455

DECAL

- danger

1шт.

45

D83264

DECAL

- capacity, 586C free lift mast

1шт.

46

D87486

WARNING DECAL

- warning, 586C free lift mast, replaces three separate decals on some masts

1шт.
