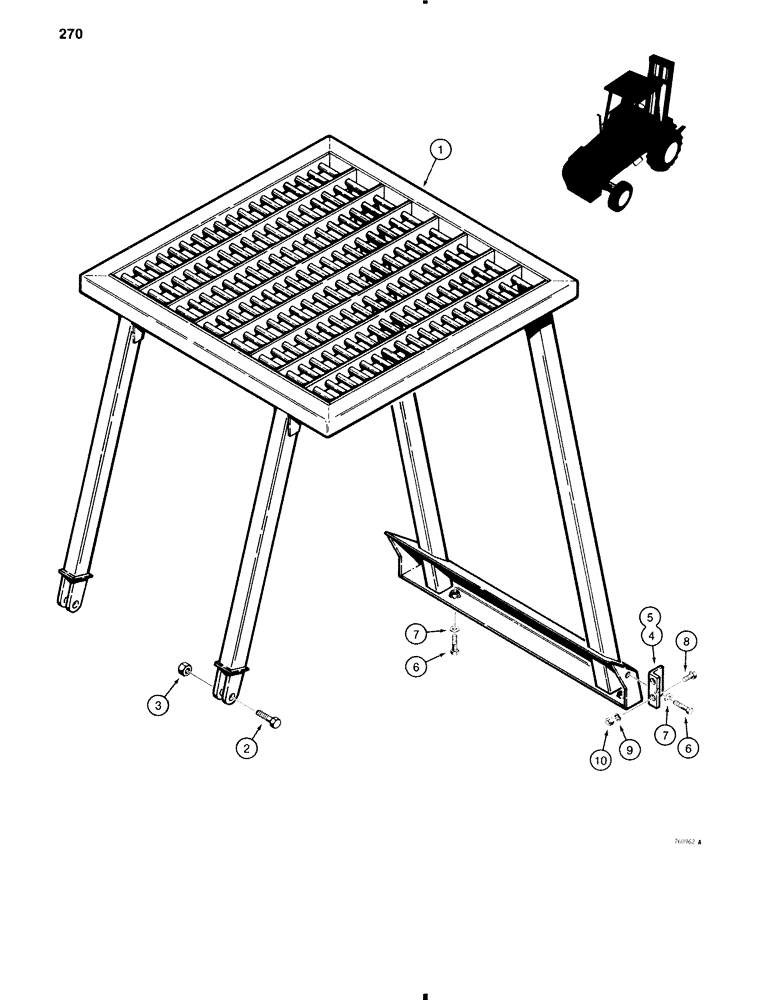

Запчасти Case 584C (270) - ROPS CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, see Figure 2 for ordering

1шт.

2

113-740

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex head, 3/4" - 10 NC x 3-1/4", grade 8, plated

2шт.

3

129-138

NUT,3/4"-10, G8

2шт.

4

D76427

BRACKET

- RH front

1шт.

5

D76426

BRACKET

- LH front

1шт.

6

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

6шт.

7

195-108

WASHER,5/8"

- flat, , plated 5/8"

6шт.

8

113-2424

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8, Full Thd

- hex head, 1/2" - 13 NC x 1-1/4", grade 8, plated

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

4шт.
