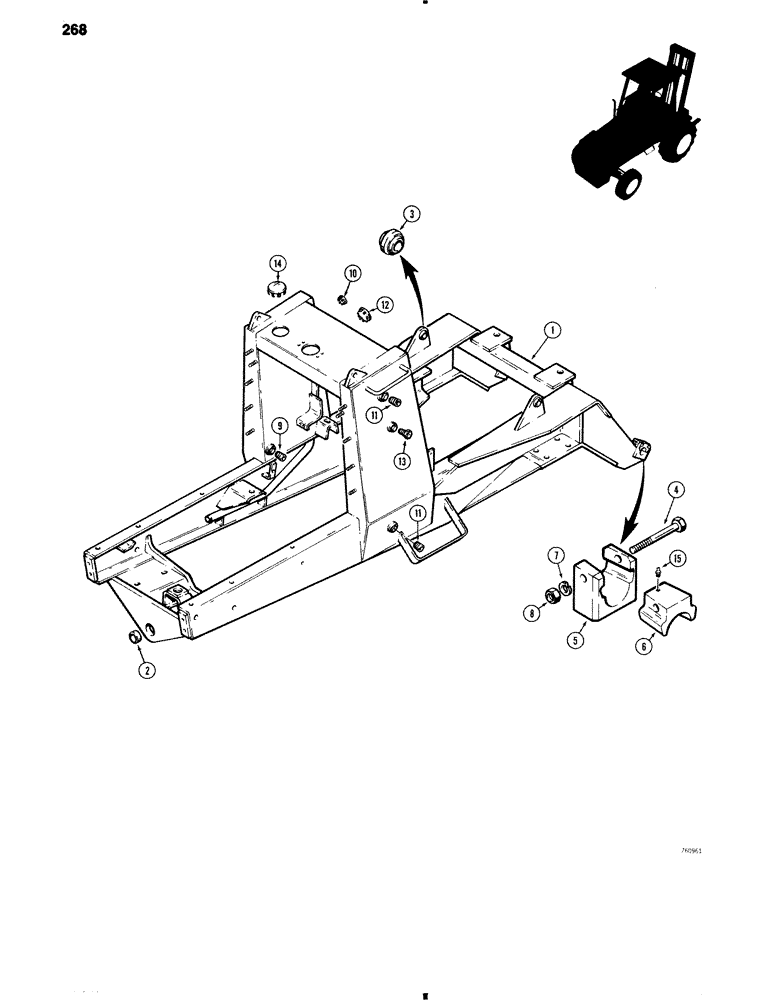

Запчасти Case 584C (268) - CHASSIS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D69968

CHASSIS - tractor, Includes: Ref. 2 - 8

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- rear axle mounting

2шт.

3

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self aligning, mast tilt cylinder and sideshift cylinder mounting

3шт.

D18570

SOCKET

BLOCK ASSEMBLY - mast trunnion mounting, right-hand, Includes: Ref. 4 - 8

1шт.

D18571

SOCKET

BLOCK ASSEMBLY - mast trunnion mounting, left-hand, Includes: Ref. 4 - 8

1шт.

4

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - trunnion mounting, right-hand and left-hand

1шт.

6

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block, right-hand and left-hand

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - hex socket, 3/4" NPT

2шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

11

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - hex socket, 1-1/4" NPT

4шт.

12

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2"

2шт.

13

D63875

PLUG

- indicator, oil level

1шт.

14

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3"

1шт.

15

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" drive

2шт.
