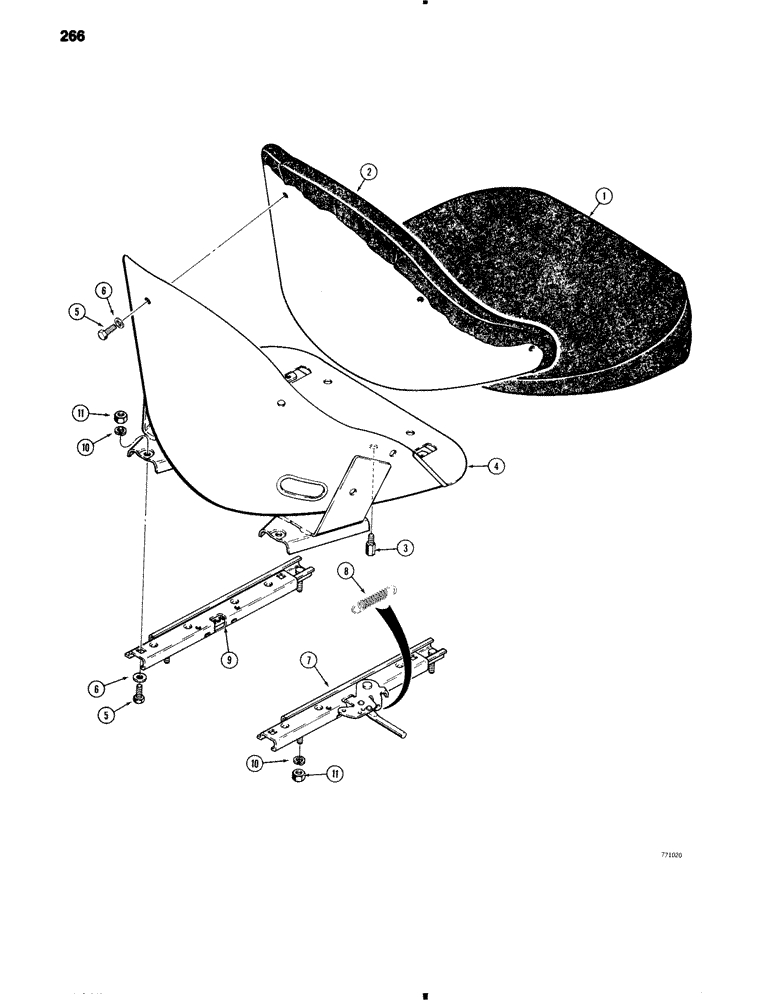

Запчасти Case 584C (266) - DELUXE SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

L77247

SEAT

ASSEMBLY - deluxe, Includes: Ref. 1 - 11

1шт.

1

D52470

CUSHION

- bottom

1шт.

2

A42747

BACKREST

CUSHION - backrest

1шт.

3

D77386

PIN

- cushion alignment

2шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

6

195-103

WASHER,5/16"

- flat, 5/16"

9шт.

7

D59688

SLIDE

- adjuster, right-hand, front adjusting lever will replace side lever, Includes: Ref. 8

1шт.

8

L30533

VALVE SPRING

SPRING - adjusting lever

1шт.

9

L35272

ADJUSTER

SLIDE - left-hand

1шт.

10

92-5

LOCK WASHER,5/16"

6шт.

11

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

6шт.
