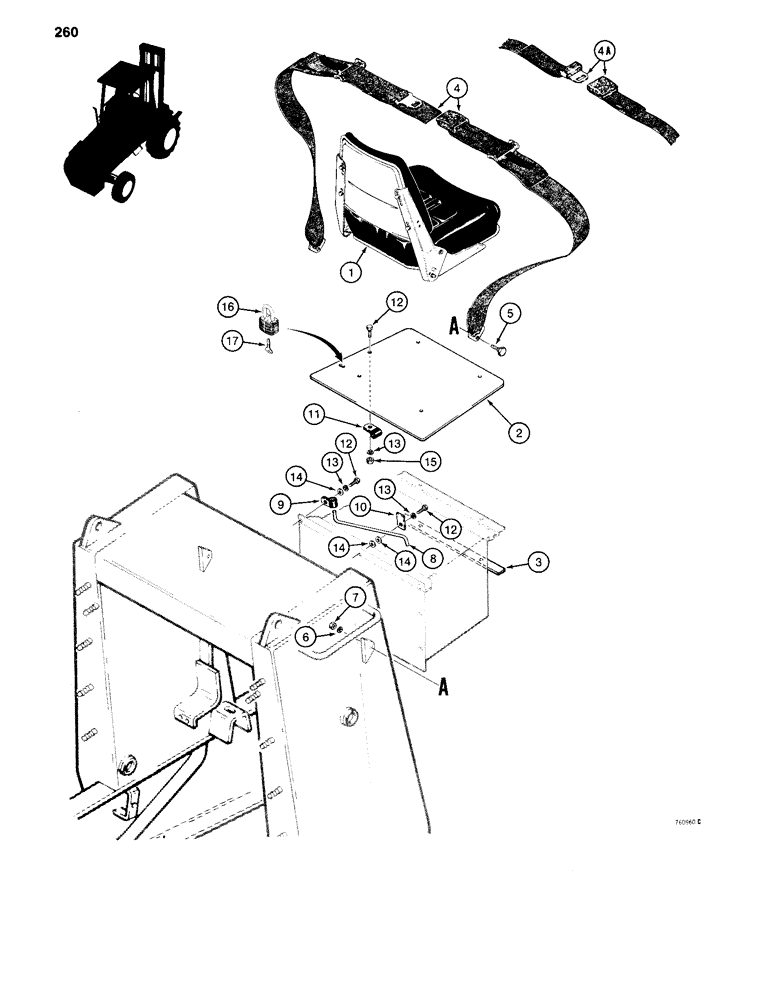

Запчасти Case 584C (260) - SEAT MOUNTING PARTS AND SEAT BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, see Figures 262-266 for the correct assembly and components

1шт.

2

D67376

PLATE

- seat mounting

1шт.

3

D68335

PLATE

- hinge reinforcement

1шт.

4

D85816

SAFETY BELT

BELT - seat, 3" (76 mm) wide, if used

1шт.

4a

D75997

SAFETY BELT ,1.80" W

If used 1.80" W

1шт.

5

F42236

STEP BOLT

SHOULDER BOLT - 7/16" - 20 NF x 1-1/4", plated

2шт.

6

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

8

D77709

ROD

- seat support

1шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- support rod

1шт.

10

D49640

BLOCK

PLATE - rod retaining

1шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- on seat mounting plate

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

16

D93753

PADLOCK

- includes keys, Includes: Ref. 17

1шт.

17

R29555

KEY

- for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
