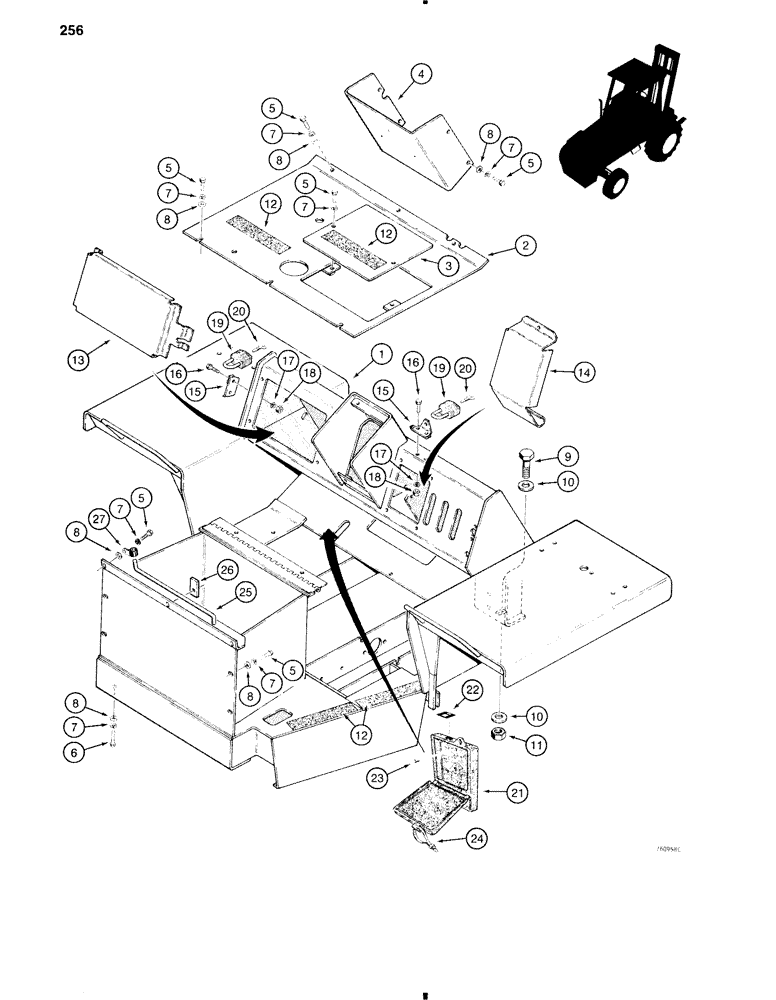

Запчасти Case 584C (256) - FENDERS, FLOOR PLATES AND BATTERY BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D121700

PLATFORM

- operators

1шт.

2

D72119

PLATE - floor, center, used before sn 9000264

1шт.

2

D86771

PLATE - floor, center, used on sn 9000264 and after

1шт.

3

D72120

COVER

- access, floor

1шт.

4

D120041

COVER

- access, control valve

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

19шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

21шт.

8

195-25

WASHER,3/8"

- flat, 3/8"

19шт.

9

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

10

195-53

WASHER,1" x 2" x .134"

- flat, 1"

4шт.

11

25-1616

NUT,1"-8, G5, Hvy

- hex, 1" - 8 NC

2шт.

12

D55216

PAD,2" x 9"

STRIP - non-skid

6шт.

13

D77104

COVER

- instrument panel, if used

1шт.

14

D77082

COVER

- switches, if used

1шт.

15

D76641

BRACKET

- covers, if used

2шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

19

D93753

PADLOCK

- includes keys, Includes: Ref. 20

2шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

R38893

CASE

BOX - operators manual, if used, Includes: Ref. 22

1шт.

22

N7120

LATCH

- manual

1шт.

23

151-520

RIVET,Pop, 3/16" x .450"

POP RIVET - 3/16"

3шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - manual box

1шт.

25

D77709

ROD

- seat support

1шт.

26

D49640

BLOCK

- seat support rod

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- seat support rod

1шт.

D67637

FENDER ASSY.

L.H.

1шт.

D67638

FENDER ASSY.

R.H.

1шт.
