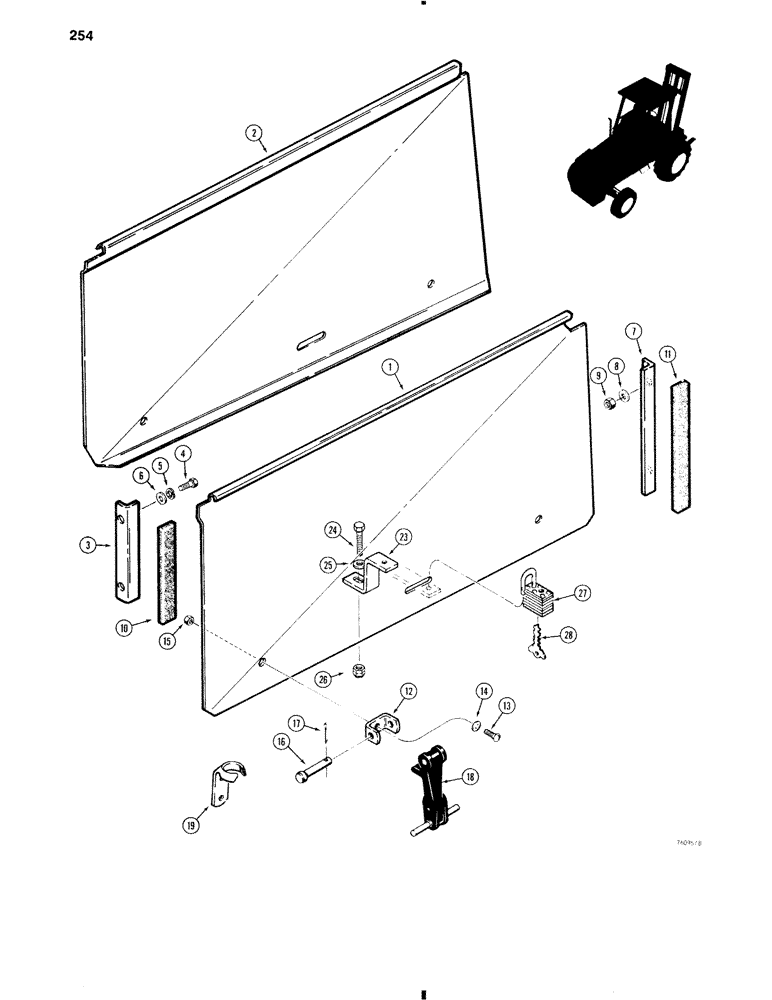

Запчасти Case 584C (254) - ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D74231

PANEL

- side, engine, right-hand

1шт.

2

D74230

PANEL

- side, engine, left-hand

1шт.

3

D72202

ANGLE

BRACKET - side panel stop, rear

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

7

D68862

ANGLE

BRACKET - side panel stop, front

2шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16"

4шт.

10

D95586

SEAL - rubber strip, rear

2шт.

11

D95585

BAND

SEAL - rubber strip, front

2шт.

12

L47159

BRACKET

- anchor, hook

4шт.

13

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

15

131-651

NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

4шт.

16

141-66

CLEVIS PIN,5/16" x 1 13/16"

PIN - hook mounting

4шт.

17

132-26

COTTER PIN

PIN - 1/8" x 1/2"

4шт.

18

L47157

HOOK

- side panel holddown

4шт.

19

D77935

HOOK

BRACKET - hook, Serial Range: welds-frame

4шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

D73867

BRACKET

- for padlock, if used

2шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

25

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

26

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

2шт.

27

D93753

PADLOCK

- includes keys, Includes: Ref. 28

2шт.

28

R29555

KEY

- for Master padlock only

2шт.

28

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
