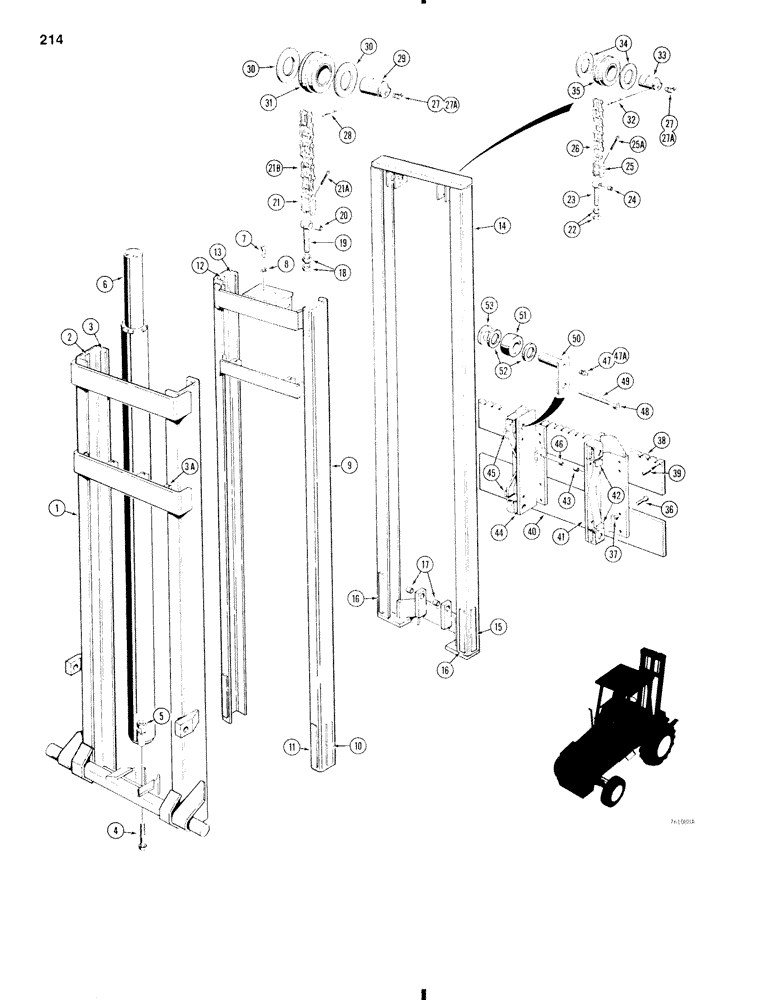

Запчасти Case 584C (214) - 28 FOOT (8.5 M) MAST FOR 584C (83) - TELESCOPIC SINGLE ARM

D16089

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 53

1шт.

1

D55400

FRAME - outer, Includes: Ref. 2 - 3A

1шт.

2

D55411

STRIP

WEAR PLATE - 1/8" thick x 6" (3 mm x 152 mm)

2шт.

3

D55409

STRIP

WEAR PLATE - 3/16" thick x 6" (5 mm x 152 mm)

4шт.

3a

D47895

WEAR PAD

WEAR PLATE - 5/16" thick x 4-1/2" (8 mm x 114 mm)

2шт.

4

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

7/16"-14 x 6", G5

1шт.

5

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

6

N7644

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 190

1шт.

7

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

SCREW - hex socket head, 1/2" - 20 NF x 2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

D55401

FRAME

- center, Includes: Ref. 10 - 13

1шт.

10

D55412

STRIP

WEAR PLATE - 1/8" thick x 10" (3 mm x 254 mm)

2шт.

11

D55410

STRIP

WEAR PLATE - 3/16" thick x 10" (5 mm x 254 mm)

4шт.

12

D55411

STRIP

WEAR PLATE - 1/8" thick x 6" (3 mm x 152 mm)

2шт.

13

D55409

STRIP

WEAR PLATE - 3/16" thick x 6" (5 mm x 152 mm)

4шт.

14

D55402

FRAME

- inner, Includes: Ref. 15 - 17

1шт.

15

D27362

WEAR PAD

WEAR PLATE - 1/8" thick x 10" (3 mm x 254 mm)

2шт.

16

D27365

PAD

WEAR PLATE - 3/16" thick x 10" (5 mm x 254 mm)

4шт.

17

D39476

BUSHING

- chain anchor, no longer available, order N6878 link

2шт.

18

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF

4шт.

19

N6877

BOLT

- inner chain, Includes: Ref. 20

2шт.

19

D36575

EYEBOLT

- inner chain, order N6877 and N6878, Includes: Ref. 20

2шт.

20

D39476

BUSHING

- eyebolt, no longer available, order N6878 link

1шт.

21

N6878

CHAIN LINK

LINK - connecting, inner chain, Includes: Ref. 21A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

21

D36579

LINK

- connecting, inner chain, order N6878 link, Includes: Ref. 21A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

21a

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

21b

D55397

CHAIN (AG)

CHAIN - lift, 105 links

2шт.

22

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

4шт.

23

N6011

BOLT

- outer chain, Includes: Ref. 24

2шт.

23

D26200

BOLT

- outer chain, order N6010 and N6011, Includes: Ref. 24

2шт.

24

D26196

BUSHING

- eyebolt, D26200, no longer available, order N6010 link

1шт.

25

N6010

LINK,50.749mm Pitch

- connecting, outer chain, Includes: Ref. 25A

4шт.

25

D32583

LINK

- connecting, outer chain, order N6010 link, Includes: Ref. 25A

4шт.

25a

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

26

D55398

CHAIN (CE)

CHAIN - lift, 137 links

2шт.

27

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 67-1/2 degrees, 3/16" drive

2-4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

27a

211-5

BALL,3/16" Dia

- steel, 3/16", if used, not shown

2шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

28

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

29

N7324

KIT

PIN - inner guide wheel, service, includes Refs. 27 and 27A

2шт.

30

D36582

WASHER

THRUST WASHER - wheel

4шт.

31

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - guide

2шт.

32

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

33

D87070

PIN

- wheel, service, includes Refs. 27 and 27A

2шт.

34

60944

THRUST WASHER

THRUST WASHER - wheel

4шт.

35

D32588

SPROCKET ASSY.

WHEEL - guide, requires grease fitting, if used

2шт.

35

D87069

SPROCKET ASSY.

WHEEL - guide, sealed, if used

2шт.

36

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

37

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

16шт.

38

D47875

LARGE PLATE

BACK PLATE - upper, 48"

1шт.

39

138-2050

PIN,7/16" x 2", Coiled

2шт.

40

D47876

LARGE PLATE

BACK PLATE - lower, 48"

1шт.

41

D55405

SHEET

CARRIAGE - right-hand, Includes: Ref. 42 and 43

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D55407

WEAR PAD

WEAR PLATE - bronze

2шт.

43

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

44

D55406

SHEET

CARRIAGE - left-hand, Includes: Ref. 45 and 46

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

45

D55407

WEAR PAD

WEAR PLATE - bronze

2шт.

46

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

47

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" drive, if used

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

47a

211-5

BALL,3/16" Dia

- steel, 3/16", if used, not shown

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

48

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

4шт.

49

178-692

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

- socket head, 1/2" - 13 NC x 2-3/4"

4шт.

50

D86606

AXLE

PIN - roller, service, includes Refs. 47 and 47A

4шт.

51

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

ROLLER - load

4шт.

52

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

THRUST WASHER - roller

8шт.

53

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

THRUST WASHER - roller

4шт.
