Артикул
Название
Примечание
Количество
D16088

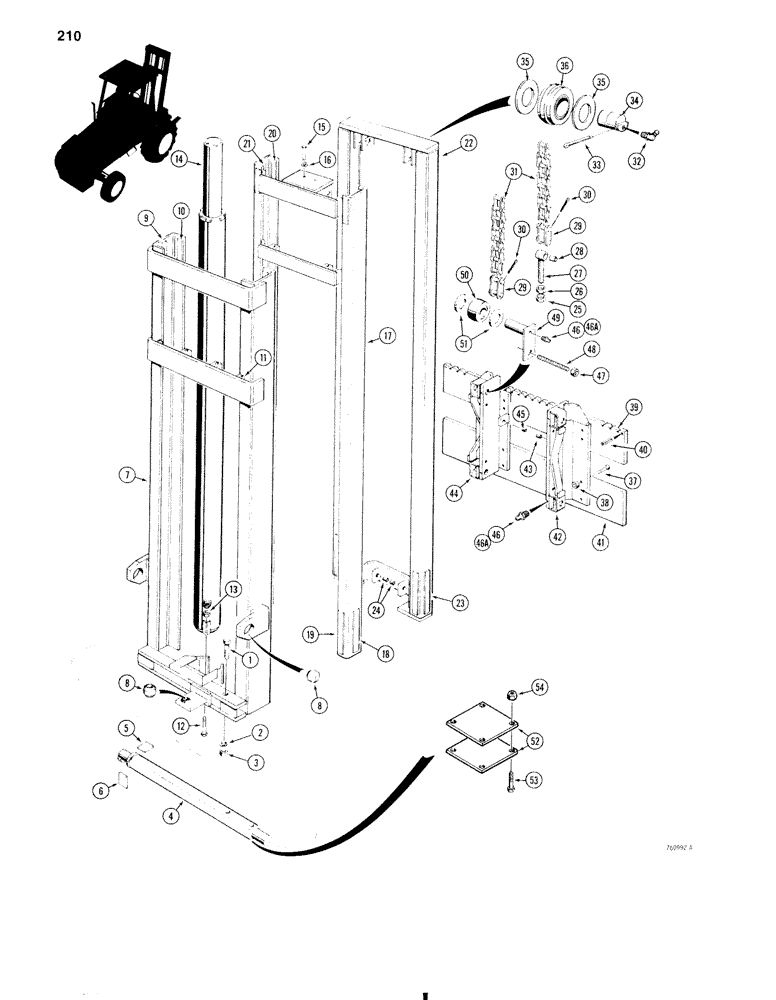

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 54
1шт.
1
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
If used, see Refs. 52-54 Hex, 1/2"-13 x 4 1/2", G5
1шт.
2
92-8
LOCK WASHER,1/2"
if used 1/2"
1шт.
3
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC, if used
1шт.
4
D75934
BAR
- trunnion
1шт.
5
D40841
LARGE PLATE
WEAR PLATE - horizontal
4шт.
6
D40840
LARGE PLATE
WEAR PLATE - vertical
4шт.
7
D73662
FRAME
- outer, Includes: Ref. 8 - 11
1шт.
8
D40843
BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L
BEARING - self-aligning
3шт.
9
D32555
PAD
WEAR PLATE - 1/8" thick x 5" (3 mm x 127 mm)
2шт.
10
D27363
WEAR PAD
WEAR PLATE - 3/16" thick x 6" (5 mm x 152 mm)
4шт.
11
D47895
WEAR PAD
WEAR PLATE - 5/16" thick x 4-1/2" (8 mm x 114 mm)
2шт.
12
13-888
BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5
1шт.
14
N7643
CYLINDER
- lift, parts list Figure 191
1шт.
15
165-166
HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"
SCREW - hex socket head, 1/2" - 20 NF x 2"
2шт.
16
92-8
LOCK WASHER,1/2"
2шт.
17
D73664
CHANNEL
FRAME - center, Includes: Ref. 18 - 21
1шт.
18
D27362
WEAR PAD
WEAR PLATE - 1/8" thick x 10" (3 mm x 254 mm)
2шт.
19
D27365
PAD
WEAR PLATE - 3/16" thick x 10" (5 mm x 254 mm)
4шт.
20
D27364
WEAR PAD
WEAR PLATE - 1/8" thick x 6" (3 mm x 152 mm)
4шт.
21
D32555
PAD
WEAR PLATE - 1/8" thick x 5" (3 mm x 127 mm)
2шт.
22
D73663
FRAME
- inner, Includes: Ref. 23 and 24
1шт.
23
60972
STRIP
WEAR PLATE - 1/8" thick x 11" (3 mm x 279 mm)
6шт.
24
D39476
BUSHING
- chain ahcnor, no longer available, order N6878 link
2шт.
25
25-1512
JAM NUT,Jam, 3/4"-10, G5
- hex, jam, 3/4" - 16 NF, outer chain bolt
2шт.
25
25-1516
NUT,Jam, 1"-14, G5
- hex, jam, 1" - 14 NF, inner chain bolt
2шт.
26
25-1112
NUT,3/4"-16, G5
- hex, 3/4" - 16 NF, outer chain bolt
2шт.
26
25-1116
NUT,1"-14, G5
- hex, 1" - 14 NF, inner chain bolt
2шт.
27
D26200
BOLT
- outer chain, order N6010 and N6011, Includes: Ref. 28
2шт.
27
D36575
EYEBOLT
- inner chain, order N6877 and N6878, Includes: Ref. 28
2шт.
27
N6011
BOLT
- outer chain, Includes: Ref. 28
2шт.
27
N6877
BOLT
- inner chain, Includes: Ref. 28
2шт.
28
D26196
BUSHING
- eyebolt, D26200, no longer available, order N6010 link
1шт.
28
D39476
BUSHING
- eyebolt, D36575, no longer available, order N6878 link
1шт.
29
D32583
LINK
- connecting, outer chain, order N6010 link, Includes: Ref. 30
4шт.
Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.
1шт.
29
D36579
LINK
- connecting, inner chain, order N6878 link, Includes: Ref. 30
4шт.
Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.
1шт.
29
N6010
LINK,50.749mm Pitch
- connecting, outer chain, Includes: Ref. 30
4шт.
Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.
1шт.
29
N6878
CHAIN LINK
LINK - connecting, inner chain, Includes: Ref. 30
4шт.
Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.
1шт.
30
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1-2шт.
30
132-45
COTTER PIN,1/8" x 5/8"
Pin, Split (Cotter), 1/8" x 5/8"
1шт.
31
D73665
CHAIN (AG)
CHAIN - inner, 95 links
2шт.
31
D34446
CHAIN
- outer, 113 links
2шт.
32
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
GREASE FITTING - 67-1/2 degree, 3/16" drive
2-4шт.
32a
211-5
BALL,3/16" Dia
- steel, 3/16", if used, not shown
2шт.
33
132-99
COTTER PIN,3/16" x 2"
Pin, Split (Cotter), , D87070 pin 3/16" x 2"
2шт.
33
132-102
COTTER PIN,3/16" x 2 1/2"
Pin, Split (Cotter), , N7324 pin 3/16" x 2 1/2"
2шт.
34
D87070
PIN
- outer, service, includes Refs. 32 and 32A
2шт.
34
N7324
KIT
PIN - inner guide wheel, service, includes Refs. 32 and 32A
2шт.
35
60944
THRUST WASHER
THRUST WASHER - outer guide wheel
4шт.
35
D36582
WASHER
THRUST WASHER - inner guide wheel
4шт.
36
D32588
SPROCKET ASSY.
WHEEL - chain guide, outer, requires grease fitting, if used
2шт.
36
D87069
SPROCKET ASSY.
WHEEL - chain guide, outer, sealed, if used
2шт.
36
D39482
SUPPORT,1.75" ID x 4.3" OD x 1.51"
WHEEL - chain guide, inner
2шт.
37
61-832
HEX SOC SCREW,1/2"-13 x 2"
SCREW - hex, socket head, 1/2" - 13 NC x 2"
16шт.
38
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam, 1/2"-13 NC
16шт.
39
D47875
LARGE PLATE
BACK PLATE - upper, 48"
1шт.
41
D47876
LARGE PLATE
BACK PLATE - lower, 48"
1шт.
Mounting holes are not drilled and must be aligned and drilled out at installation
1шт.
42
D47877
SHEET
CARRIAGE ASSEMBLY - right-hand, Includes: Ref. 43
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
43
D26196
BUSHING
- chain anchor, no longer available, order N6010 link
1шт.
44
D47878
SUPPORT ASSY.
CARRIAGE ASSEMBLY - left-hand, Includes: Ref. 45
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
45
D26196
BUSHING
- chain anchor, no longer available, order N6010 link
1шт.
46
219-13
LUBE NIPPLE,3/16" NPTF
GREASE FITTING - straight, 3/16" drive, if used
4-8шт.
Steel balls are used in some pins in place of grease fittings when sealed bearings are used.
1шт.
46a
211-5
BALL,3/16" Dia
- steel, 3/16", if used, not shown
4-8шт.
Steel balls are used in some pins in place of grease fittings when sealed bearings are used.
1шт.
47
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam, 1/2"-13 NC
4шт.
48
178-693
SET SCREW,Hex Soc, 1/2"-13 x 3"
- 1/2" - 13 NC x 3"
4шт.
49
D86604
AXLE
PIN - roller, service, includes Refs. 46 and 46A
4шт.
50
D47894
ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W
ROLLER - load
4шт.
51
60917
THRUST WASHER
THRUST WASHER - roller
8шт.
52
D88745
LARGE PLATE
PLATE - trunnion bar ends, if used, see Ref. 1
4шт.
53
13-548
CAP,Hex, 5/16" - 18 x 3", Gr 5
BOLT - hex head, 5/16" - 18 NC x 3, if used
8шт.
54
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16" - 18 NC
8шт.
