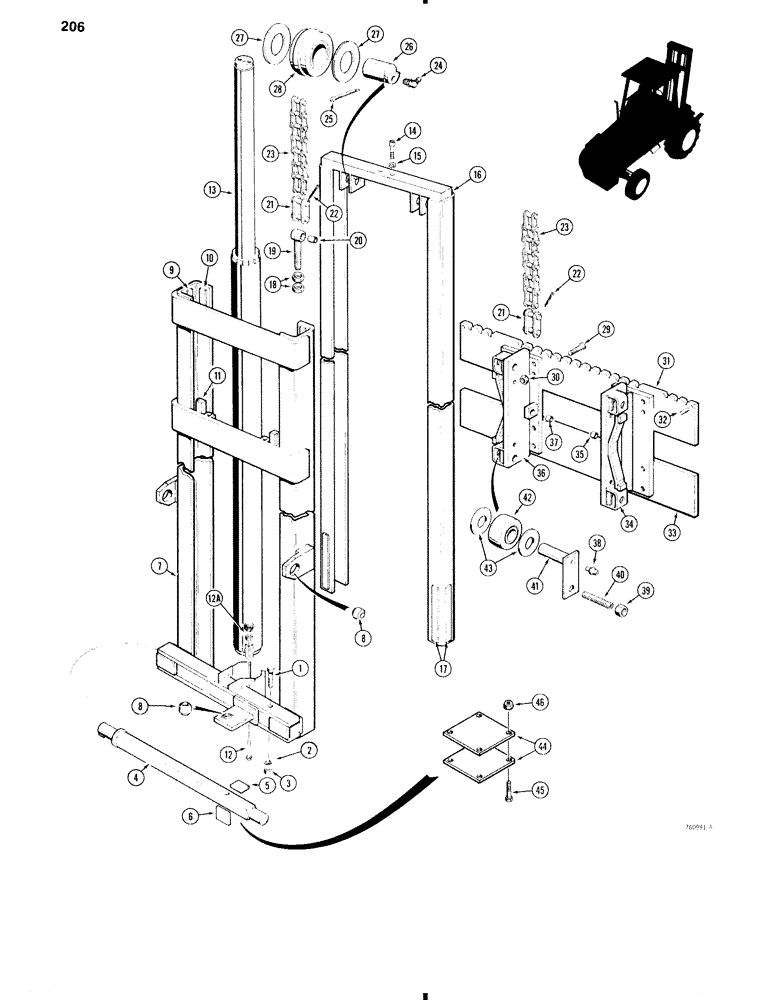

Запчасти Case 584C (206) - 14-1/4 FOOT (4.3 M) MAST FOR 584C (83) - TELESCOPIC SINGLE ARM

D121915

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 46

1шт.

1

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

If used, see Refs. 44-46 Hex, 1/2"-13 x 4 1/2", G5

1шт.

2

92-8

LOCK WASHER,1/2"

if used 1/2"

1шт.

3

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

1шт.

4

D75934

BAR

- trunnion

1шт.

5

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

6

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.

7

D75936

CHANNEL

FRAME - outer, Includes: Ref. 8 - 11

1шт.

8

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

BEARING - self-aligning

3шт.

9

D32555

PAD

WEAR PLATE - 1/8" thick x 5" (3 mm x 127 mm)

2шт.

10

D27366

WEAR PAD

WEAR PLATE - 1/8" thick x 7" (3 mm x 178 mm)

4шт.

11

D47895

WEAR PAD

WEAR PLATE - 5/16" x 4-1/2" (8 mm x 114 mm)

2шт.

12

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

7/16"-14 x 6", G5

1шт.

12a

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

13

N7643

CYLINDER

- lift, parts list Figure 190

1шт.

14

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

SCREW - hex socket head, 1/2" - 20 NF x 2"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

D77580

FRAME

- inner, Includes: Ref. 17

1шт.

17

60972

STRIP

WEAR PLATE - 1/8" thick x 11" (3 mm x 279 mm)

6шт.

18

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

4шт.

19

N6012

BOLT

- chain, Includes: Ref. 20

2шт.

19

60948

EYEBOLT,1/2" - 20 x 4 5/8"

- chain, order N6012 and N6010, Includes: Ref. 20

2шт.

20

D26196

BUSHING

- eyebolt, 60948, no longer available, order N6010 link

1шт.

21

D32583

LINK

- connecting, lift chain, order N6010 link, Includes: Ref. 22

4шт.

21

N6010

LINK,50.749mm Pitch

- connecting, Includes: Ref. 22

4шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1-2шт.

22

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), , If used 1/8" x 5/8"

1шт.

23

D34446

CHAIN

- lift, no roller

2шт.

24

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 67-1/2 degree, 3/16" drive, if used

2шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

24a

211-5

BALL,3/16" Dia

- steel, 3/16", if used, not shown

2шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

25

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

26

D87070

PIN

- wheel, service, includes Refs. 24 and 24A

2шт.

27

60944

THRUST WASHER

THRUST WASHER - guide wheel

4шт.

28

D32588

SPROCKET ASSY.

WHEEL - chain guide, requires grease fitting, if used

2шт.

28

D87069

SPROCKET ASSY.

WHEEL - chain guide, sealed, if used

2шт.

29

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

30

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

16шт.

31

D47875

LARGE PLATE

BACK PLATE, upper, 48"

1шт.

32

138-2050

PIN,7/16" x 2", Coiled

2шт.

33

D47876

LARGE PLATE

BACK PLATE, lower, 48"

1шт.

34

D47901

SUPPORT ASSY.

CARRIAGE ASSEMBLY - right-hand, Includes: Ref. 35

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

35

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

36

D47902

SUPPORT ASSY.

CARRIAGE ASSEMBLY - left-hand, Includes: Ref. 37

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

37

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

38

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" drive, if used

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

38a

211-5

BALL,3/16" Dia

- steel, 3/16", if used, not shown

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

39

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

4шт.

40

178-693

SET SCREW,Hex Soc, 1/2"-13 x 3"

- 1/2" - 13 NC x 3"

4шт.

41

D86604

AXLE

PIN - roller, service, includes Refs. 38 and 38A

4шт.

42

D47894

ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W

ROLLER - load

4шт.

43

60917

THRUST WASHER

WASHER - thrust

8шт.

44

D88745

LARGE PLATE

PLATE - trunnion bar ends, if used, see Ref. 1

4шт.

45

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex head, 5/16" - 18 NC x 3", if used

8шт.

46

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, if used

8шт.
