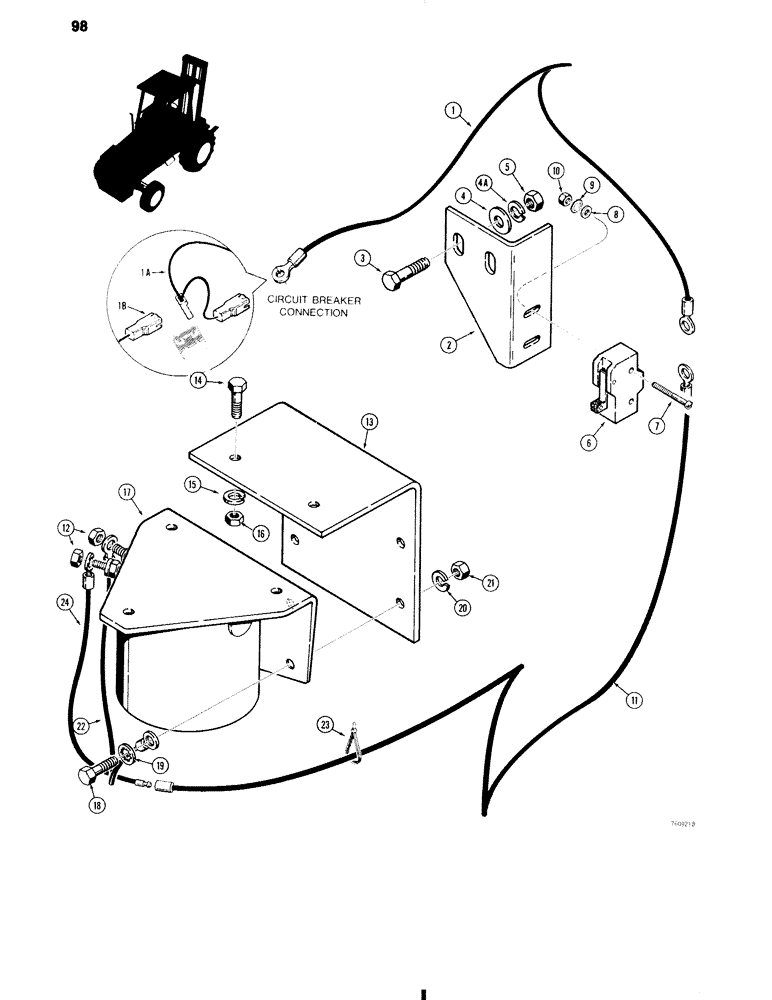

Запчасти Case 584C (098) - BACKUP ALARM (55) - ELECTRICAL SYSTEMS

1

D72309

WIRE - circuit breaker to switch, used before tractor sn 8980051

1шт.

1a

D76756

ELECTRICAL WIRE

WIRE - circuit breaker to switch, used on tractor sn 8980051 and after

1шт.

1b

D76214

ELECTRICAL WIRE

WIRE - adapter, will adapt D76756 wire for use on circuit breakers before tractor sn 8980051, if used

1шт.

2

D75536

BRACKET

- switch mounting

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

4a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

D40921

SWITCH

- backup alarm

1шт.

7

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- fillister head, No. 6 - 32 NC x 1-1/4"

2шт.

8

195-7

WASHER,#6

- flat, No. 6

2шт.

9

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

10

129-15

NUT,#6-32

2шт.

11

D72308

ELECTRICAL WIRE

WIRE - switch to backup alarm

1шт.

On models having a single wire connecting the switch and backup alarm, order 1, D72308 wire and 1, D77263 wire to replace the single wire.

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8 - 32 NC

2шт.

13

D75815

BRACKET

- backup alarm

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

17

D75814

BUZZER

BACKUP ALARM electric, round shaped

1шт.

17

D121972

ALARM

BACKUP ALARM, electric, rectangular shaped

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

22

D70125

ELECTRICAL WIRE

WIRE - ground

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

24

D77263

ELECTRICAL WIRE

WIRE - to backup alarm

1шт.

On models having a single wire connecting the switch and backup alarm, order 1, D72308 wire and 1, D77263 wire to replace the single wire.

1шт.
