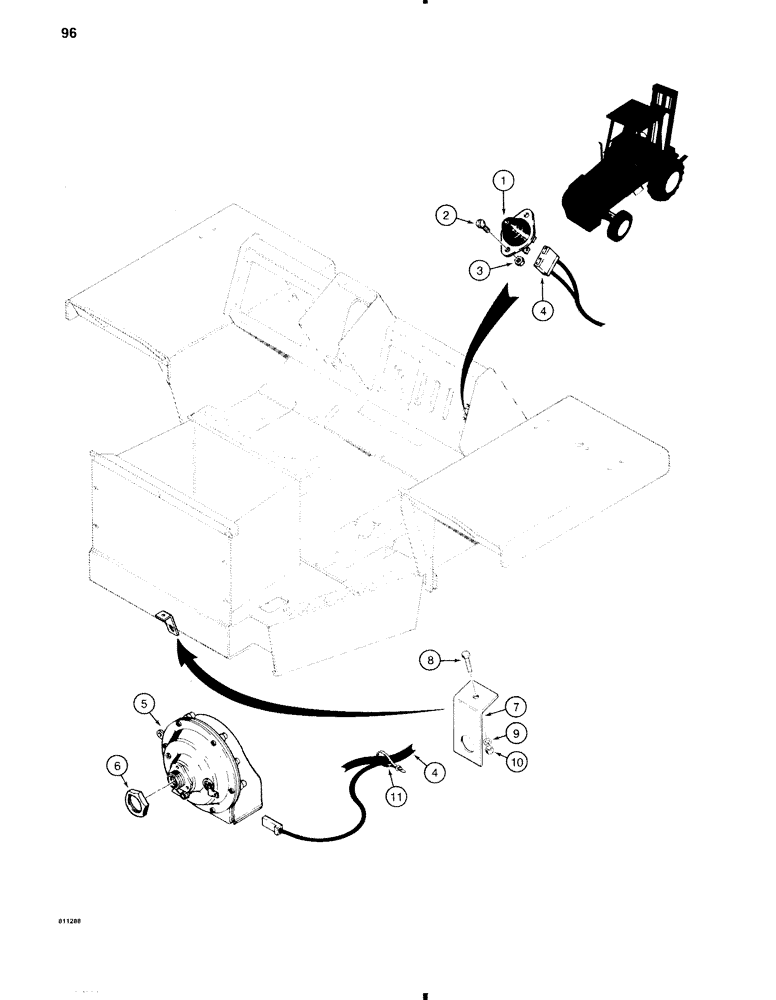

Запчасти Case 584C (096) - HORN (55) - ELECTRICAL SYSTEMS

1

D67872

SWITCH

- horn, push button type

1шт.

2

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, No. 8 - 32 NC x 1/2"

2шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8 - 32 NC

2шт.

4

REF

INSTRUCTION

HARNESS - main wiring, see Figure 76 or 78

1шт.

5

S203189

HORN

- 12 volt

1шт.

6

L30866

LOCK NUT

- hex, horn mounting

1шт.

7

D70129

MOUNTING PARTS

BRACKET - horn mounting, if used

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness

1шт.
