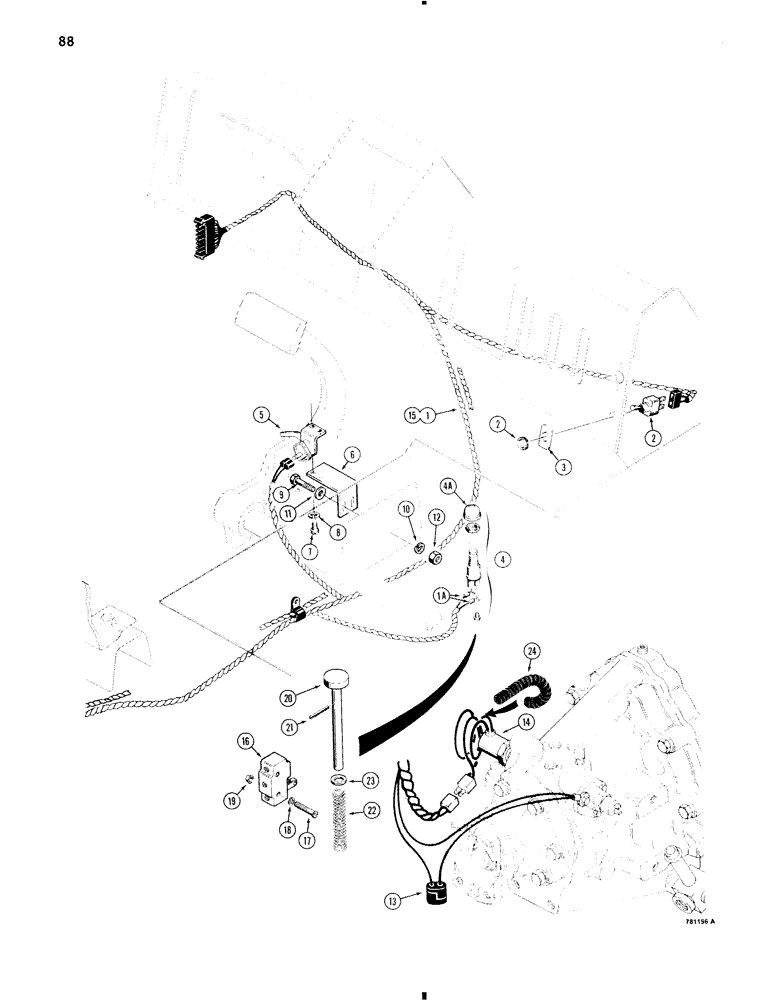

Запчасти Case 584C (088) - POWER SHUTTLE ELECTRICAL CIRCUIT, TRACTOR SN 8980051 & AFTER, USED ON TRACTOR SN 9000264 & AFTER (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D76778
HARNESS
- main, includes clutch cutout circuit, has terminals for No. 10 screws on Ref. 4, order D86803 harness and (2) 223-50 terminals
1шт.
1
D86803
HARNESS
- main, includes clutch cutout circuit, requires (2) 223-50 terminals to adapt to Ref. 4
1шт.
1a
223-50
TERMINAL CONNECTOR,14 - 16
TERMINAL - for No. 10 screws on Ref. 4, required when using D86803 harness before tractor sn 9000264
2шт.
2
D67251
SWITCH
- clutch cutout, dash mounted
1шт.
3
D73929
PLATE
- switch
1шт.
4
D71139
SWITCH
- clutch cutout, floor, includes No. 10 terminal screws, Includes: Ref. 4A
1шт.
4a
L60490
BUTTON
COVER - rubber, D71139 switch
1шт.
5
A33977
SWITCH
- clutch cutout, brake pedal
1шт.
6
D77685
BRACKET
- brake switch
1шт.
7
182-143
SCREW,Cross Pan Hd, #10 - 32 x 3/8"
- No. 10 - 32 NF x 3/8"
2шт.
8
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
9
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
10
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
11
195-18
WASHER,1/4"
- flat, 1/4"
2шт.
12
25-104
NUT,1/4"-20, G5
2шт.
13
L71879
DIODE ELEMENT,400V, 3A
DIODE - switch protecting
1шт.
14
D67903
SOLENOID
- clutch cutout, at shuttle
1шт.
15
D86803
HARNESS
- main, includes clutch cutout circuit, has terminal screws for No. 6 screws on Ref. 16
1шт.
16
D40921
SWITCH
- clutch cutout, floor, roller actuated, includes No. 6 terminal screws
1шт.
17
169-165
SCREW - No. 6 - 32 NC x 1-1/8", plated
2шт.
18
195-507
WASHER,#6
- flat, No. 6, plated
2шт.
19
193-1003
NUT,Keps, w/LW,#6-32
- hex, special lock, No. 6 - 32 NC, plated
2шт.
20
D84327
ROD
- switch actuating
1шт.
21
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
22
T34088
SPRING
- rod return
1шт.
23
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
1шт.
24
D84688
GUARD
SLEEVE - solenoid wires
1шт.
Выбрано товаров: 27
