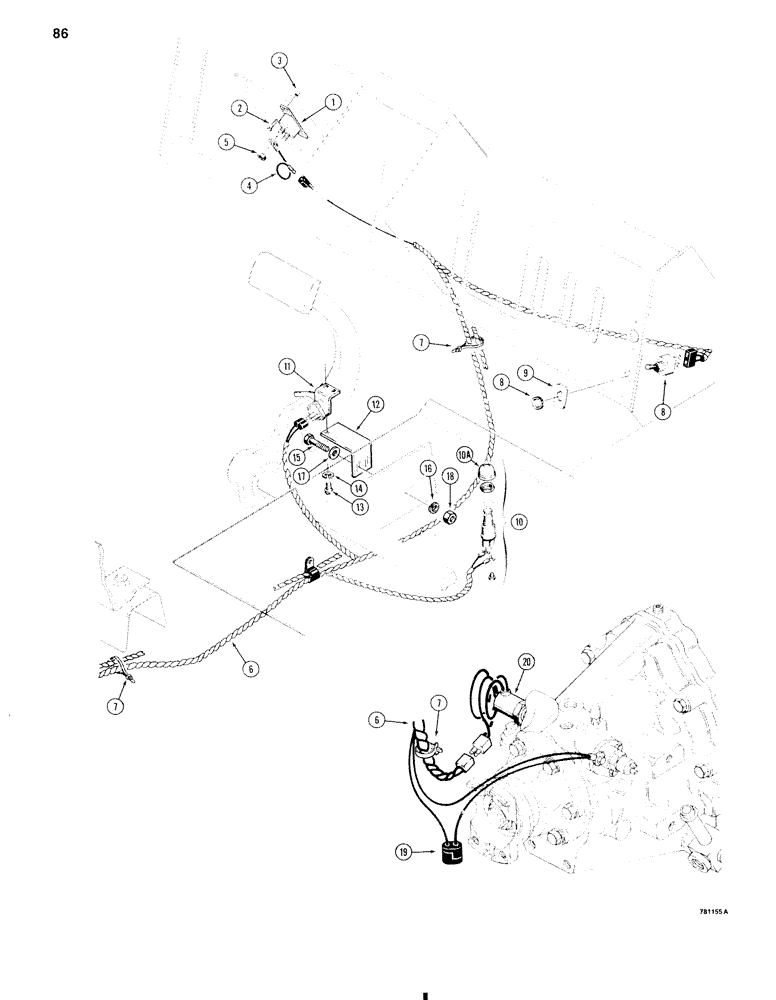

Запчасти Case 584C (086) - POWER SHUTTLE ELECTRICAL CIRCUIT, BEFORE TRACTOR SN 8980051 (55) - ELECTRICAL SYSTEMS

1

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

2

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, No. 8 - 32 NC x 1/2"

2шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- lock, No. 8 - 32 NC

2шт.

4

D76214

ELECTRICAL WIRE

WIRE - from circuit breaker

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- lock, No. 10 - 32 NF, wire terminal

1шт.

6

D77692

HARNESS

- clutch cutout, for service order (1) D76778 main harness shown in Figure 88 and (1) D76214 wire

1шт.

6a

D76214

ELECTRICAL WIRE

WIRE - adapter, connects D76778 main harness to screw terminal circuit breakers, if used, not shown

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

8

D67251

SWITCH

- clutch cutout, dash mounted

1шт.

9

D73929

PLATE

- clutch cutout switch

1шт.

10

D71139

SWITCH

- clutch cutout, floor, Includes: Ref. 10A

1шт.

10a

L60490

BUTTON

COVER - rubber, D71139 switch

1шт.

11

A33977

SWITCH

- clutch cutout, brake pedal

1шт.

12

D77685

BRACKET

- brake switch

1шт.

13

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- No. 10 - 32 NF x 3/8"

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

19

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

20

D67903

SOLENOID

- clutch cutout, at power shuttle

1шт.
