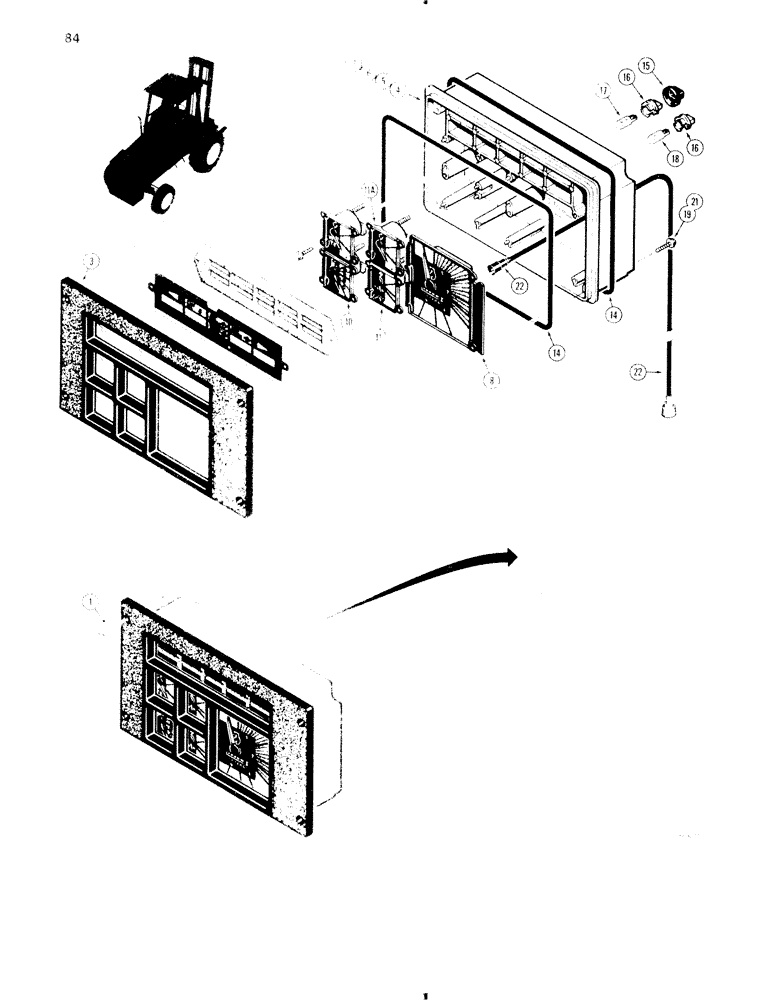

Запчасти Case 584C (084) - INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

1

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, No. 10 - 24 NC x 1/2"

4шт.

2

D64276

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY - tractor, Includes: Ref. 3 - 21

1шт.

3

D71334

LENS

COVER - instrument cluster

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - instrument cluster, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - instrument cluster

1шт.

5

NSS

NOT SOLD SEPARAT

CIRCUIT BOARD - printed

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

7

NSS

NOT SOLD SEPARAT

GASKET - case

1шт.

8

D71336

TACHOMETER

GAUGE - tachometer

1шт.

9

D71337

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

D71338

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

11

D71339

VOLTMETER

GAUGE - voltmeter

1шт.

11a

D71340

ELECTRICAL GAUGE

GAUGE - oil temperature, shuttle transmission

1шт.

12

D71341

INDICATOR

STRIP - identification, warning lamps

1шт.

13

D71342

GASKET,3.05mm Thk

- lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

15

D71344

COVER

BOOT - rubber

3шт.

16

A47125

PEDESTAL

SOCKET - lamp, green

10шт.

17

W10478

LAMP

BULB - illumination, No. 194

3шт.

18

D71346

TAIL LAMP,12V

BULB - warning, No. 168

7шт.

19

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

SCREW - hex socket head, No. 6 x 3/4", no longer used, order A45093

4шт.

20

164-13

SCREW - hex socket head, No. 6 x 1/2", no longer used, order A45093

8шт.

21

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

22

D70142

CABLE

- tachometer drive

1шт.

H422744

BOARD, PRINTED CIRCU

1шт.
