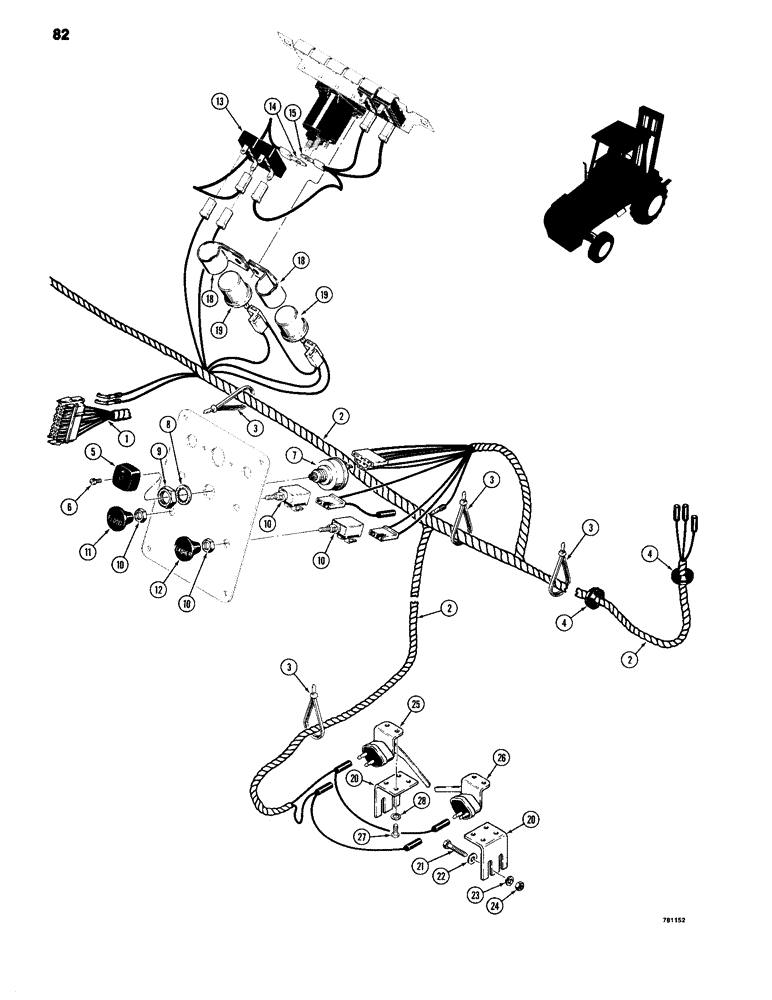

Запчасти Case 584C (082) - ELECTRICAL SYSTEM, FLASHER HARNESS AND CONTROLS, MODELS W/ FLASHER LAMPS, TRACTOR SN 8980051 & AFTER (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, see Figure 78 for main harness and related parts

1шт.

2

D76781

HARNESS

- front lamps with stop and flasher lamps

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire harness

1шт.

4

D51643

GROMMET

- wire harness

4шт.

5

A20465

KNOB

- turn signal switch

1шт.

6

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

7

D52008

SWITCH

- turn signal

1шт.

8

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , If used Int Tooth, 3/4"

1шт.

9

A20467

NUT

- turn signal switch

1шт.

10

D74330

SWITCH

- flood lamp and flasher lamp

2шт.

11

D95783

KNOB

- flood lamp

1шт.

12

D95782

KNOB

- flasher lamp

1шт.

13

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

2шт.

14

D76774

WIRE - jumper, single, circuit, Serial Range: breaker-solenoid

1шт.

15

D75225

ELECTRICAL WIRE

WIRE - jumper, triple, circuit, Serial Range: breaker-solenoid

1шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

18

A34868

CLAMP

BRACKET - flasher mounting

2шт.

19

A65550

FLASHER UNIT

FLASHER - 12 volt

2шт.

EFF: SEPT-85 THIS PART # WAS REPLACED BY # D133000 FLASHER.

1шт.

20

D77905

BRACKET

- brake pedal switch mounting

2шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

22

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

25-104

NUT,1/4"-20, G5

4шт.

25

A33976

SWITCH

- stop lamp, left-hand

1шт.

26

A33977

SWITCH

- stop lamp, right-hand

1шт.

27

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- No. 10 - 32 NF x 7/16"

4шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
