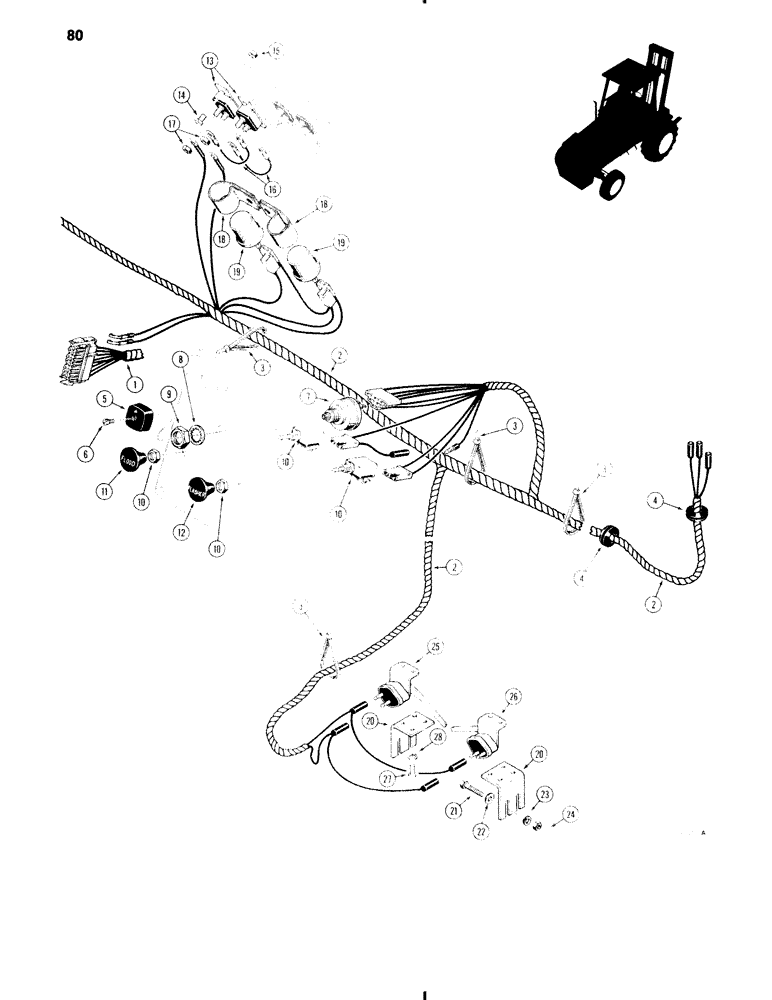

Запчасти Case 584C (080) - ELECTRICAL SYSTEM, FLASHER HARNESS AND CONTROLS, MODELS W/ FLASHER LAMPS, BEFORE TRACTOR SN 8980051 (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, see Figure 76 for main harness and related parts

1шт.

2

D74352

WIRE HARNESS

Front lamps with stop and flasher lamps

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Wire harness

4шт.

4

D50667

SPARE PART Wire harness

4шт.

5

A20465

KNOB

Turn signal switch

1шт.

6

A20468

SCREW,Spcl, #8 - 32 x 5/16"

Knob retaining

1шт.

7

D52008

SWITCH

Turn signal

1шт.

8

193-35

LOCK WASHER,Int Tooth, 3/4"

1шт.

9

A20467

NUT

Turn signal switch

1шт.

10

D74330

SWITCH

Lamp, flood and flasher

2шт.

11

D95783

KNOB

Flood lamp

1шт.

12

D95782

KNOB

Flasher lamp

1шт.

13

D37252

BREAKER

CIRCUIT - 10 amperes

2шт.

14

186-86

SCREW - pan head, slotted, No. 8 - 32 NC x 1/2"

4шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

4шт.

16

D67962

SPARE PART Jumper, circuit breaker

2шт.

16a

D76214

ELECTRICAL WIRE

WIRE Adapter, connects front lamp harness with spade terminals to circuit breakers with screw terminals, not shown

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

4шт.

18

A34868

CLAMP

BRACKET - flasher mounting

2шт.

19

A65550

FLASHER UNIT

12 volt

2шт.

20

D77905

BRACKET

Brake pedal switch mounting

2шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

22

195-18

WASHER,1/4"

4шт.

23

92-4

LOCK WASHER,1/4"

4шт.

24

25-104

NUT,1/4"-20, G5

4шт.

25

A33976

SWITCH

Stop lamp, L.H.

1шт.

26

A33977

SWITCH

Stop lamp, R.H.

1шт.

27

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

4шт.

28

193-26

LOCK WASHER,Int Tooth, #10

4шт.
