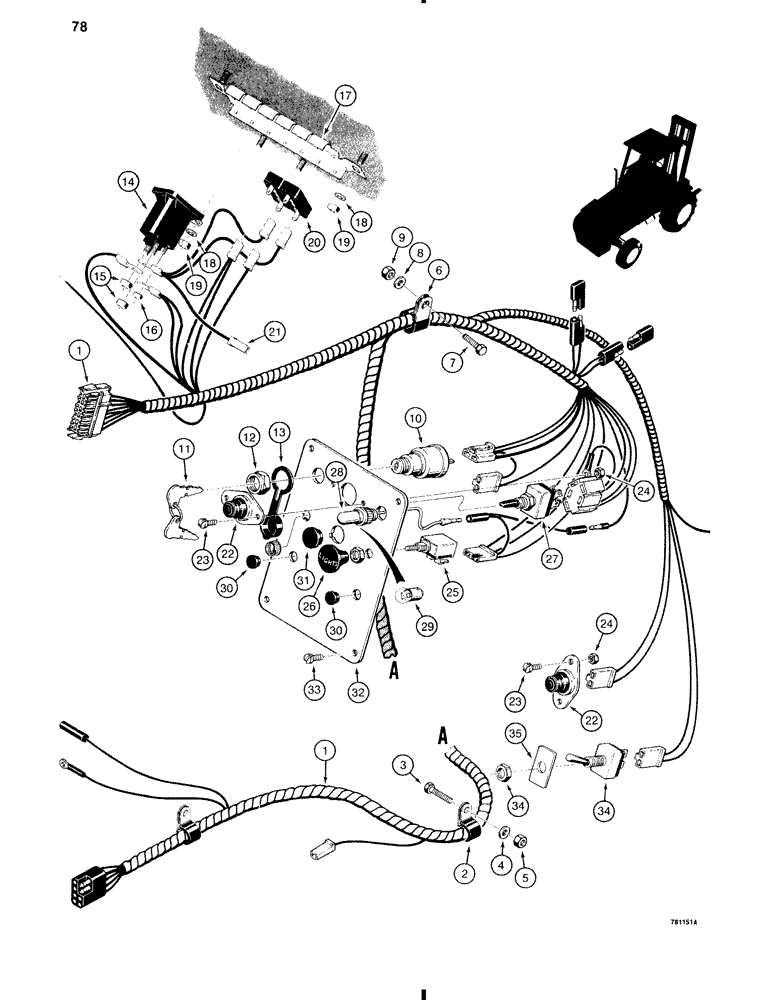

Запчасти Case 584C (078) - ELECTRICAL SYSTEM, MAIN HARNESS & INSTRMNT PANEL, MODLS W/OUT FLASHR LAMPS, TRACT SN 8980051 & AFTER (55) - ELECTRICAL SYSTEMS

1

D76778

HARNESS

- main, used before tractor sn 9000264, no longer available, order D86803 harness and two 223-50 eyelet terminals (No. 10 screw size), see Figure 88

1шт.

1

D86803

HARNESS

- main, used tractor sn 9000264, see Figure 88

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, under frame, retains harness and tachometer cable together, replaces clamp that retains harness only on some models

3шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

4

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, instrument panel area

2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

D85872

SWITCH

ASSEMBLY - key, with protective cover, replaces switch without protective cover, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

11

D36822

KEY

- switch, set of two keys

1шт.

12

G15469

NUT

- key switch, correct size for D85872 switch with protective cover only

1шт.

13

N6401

PROTECTIVE COVER

COVER - dirt and moisture protection

1шт.

14

A77311

SWITCH

SOLENOID - electrical

1шт.

15

193-1009

NUT,Keps, w/LW, 5/16"-18

- hex, lock, 5/16" - 18 NC

2шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, No. 10 - 32 NC

1шт.

17

D75355

BRACKET

- circuit breaker

1шт.

18

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, lock, 1/4" - 20 NC

4шт.

20

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

2шт.

21

D75225

ELECTRICAL WIRE

WIRE ASSEMBLY - solenoid to circuit breaker

1шт.

22

D67872

SWITCH

- push button, starter and horn

2шт.

23

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, No. 8 - 32 NC x 1/2"

4шт.

24

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8 - 32 NC

4шт.

25

D74330

SWITCH

- lamp

1шт.

26

D95781

BUTTON

KNOB - lamp switch

1шт.

27

D75360

SWITCH

- test, air cleaner and hydraulic filter

1шт.

L55568

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SOCKET ASSEMBLY - lamp

1шт.

29

A22349

BULB

- lamp, No. 9234

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

2шт.

31

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16", if used

1шт.

32

D73388

COVER

PLATE - switch mounting

1шт.

33

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted, No. 10 - 24 NC x 1/2"

4шт.

34

D67251

SWITCH

- clutch cutout, see Figures 87 and 89 for clutch cutout solenoid, connections and controls

1шт.

35

D73929

PLATE

- clutch cutout switch

1шт.
