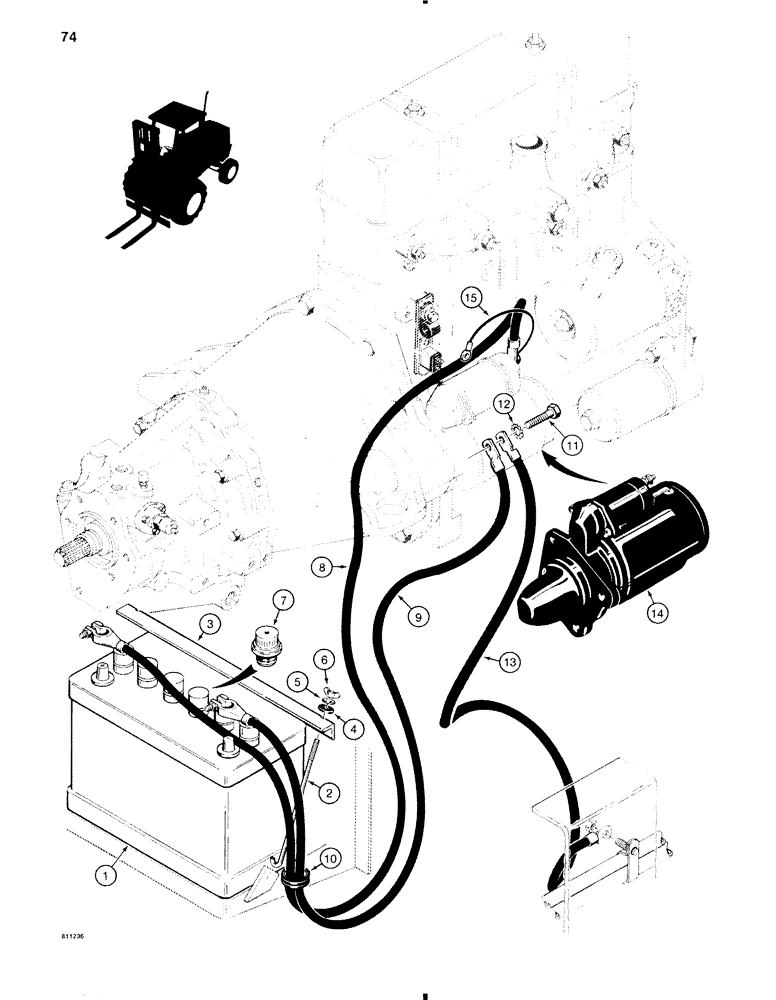

Запчасти Case 584C (074) - ELECTRICAL SYSTEM, BATTERY AND CABLES TO STARTER (55) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt, service replacement, must be used with A60553 nonspill caps

1шт.

When replacing battery, conventional caps must be removed from new battery and replaced by 6, A60553 nonspill caps. Nonspill caps can be removed from existing battery and reused or new nonspill caps can be ordered.

1шт.

2

D49723

BOLT

- J-type, battery retaining, 3/8" - 16 NC

2шт.

3

D49724

ANGLE

BRACKET - battery retaining

1шт.

4

G46867

GROMMET

- battery retaining bolt

2шт.

5

G49400

WASHER

- flat, 3/8", special

2шт.

6

129-410

WING NUT,3/8"-16

- 3/8" - 16 NC

2шт.

7

A60553

CAP

- battery, nonspill

6шт.

8

D71935

CABLE

- battery, positive

1шт.

9

D71936

CABLE

- battery, negative

1шт.

10

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- battery cables

1шт.

11

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

193-72

LOCK WASHER

- interna-external tooth lock, 3/8"

1шт.

13

F10142

CABLE

- ground

1шт.

14

R29870

STARTING MOTOR

STARTER - engine, parts list Figures 66 and 68; mounting parts in Figure 70

1шт.

15

D67876

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to starter solenoid

1шт.
