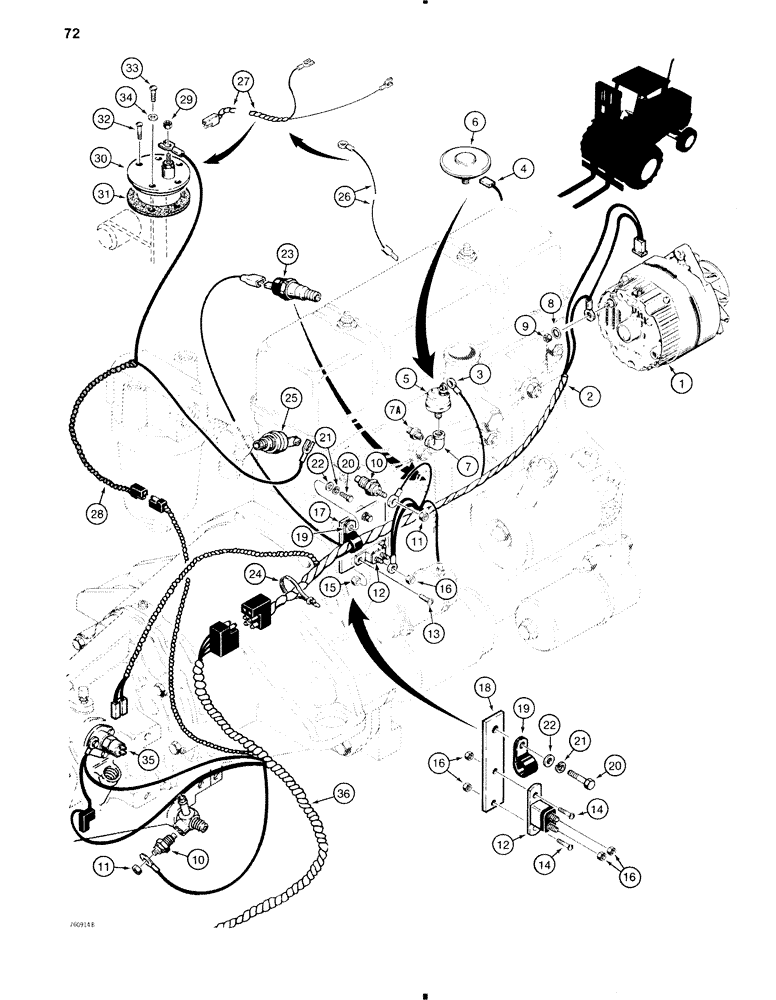

Запчасти Case 584C (072) - ELECTRICAL SYSTEM, ALTERNATOR, ENGINE HARNESS AND CONNECTIONS (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - see Figures 60 - 64 for the correct assembly and components; see Figure 70 for mounting parts

1шт.

2

D73456

HARNESS

- engine, used before tractor sn. 8980051, Includes: Ref. 3 and 4

1шт.

2

D88442

HARNESS

- engine, used on tractor sn. 8980051 and after, not shown, Includes: Ref. 3 and 4

1шт.

3

223-59

TERMINAL CONNECTOR

TERMINAL - eye, used with D67721 sender, if used

1шт.

4

223-94

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - spade, used with A154782 sender, if used

1шт.

5

D67721

SWITCH

SENDER - air filter restriction, no longer used, order A154782 sender

1шт.

6

A154782

SWITCH

SENDER - air filter restriction, replaces D67721, if engine harness has eye terminal, also order 223-94 spade terminal

1шт.

7

221-374

ELBOW,90 Degree, 1/8" NPT

- pipe, 90 degree

1шт.

7a

D36264

FITTING

AND FILTER ASSEMBLY - air restriction indicator

1шт.

8

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

9

129-18

NUT,#12-24

- hex, no. 12 - 24 NC, harness to alternator, if used

1шт.

9

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1, plated, if used

1шт.

10

D65446

SENDER UNIT

SENDER - engine and shuttle transmission temperature

2шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, No. 10 - 32 NC

2шт.

12

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes

1шт.

13

192-86

SCREW - pan head, slotted, no. 8 - 32 NC x 1/2", if used

2шт.

14

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, No. 10 - 32 NF x 1/2", if used

2шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, lock, No. 8 - 32 NC, if used

2шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, No. 10 - 32 NF

2-4шт.

17

D67957

PLATE

- circuit breaker mounting, no longer used, order D74343 plate

1шт.

18

D74343

PLATE

- circuit breaker mounting, if used

1шт.

19

49854

CLAMP

- harness

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1-2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

22

95-4

WASHER,1/4"

- flat, 1/4"

1-2шт.

23

D63294

PRESSURE SWITCH

SENDER - oil pressure

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - engine harness

1шт.

25

D65458

SWITCH

SENDER - oil filter restriction, stamped M4004-40, used with D73910 filter only, see Figure 188

1шт.

25

D87439

SWITCH

SENDER - oil filter restriction, stamped M4004-60, used with D84789 filter only, see Figure 188

1шт.

26

D67875

ELECTRICAL WIRE

WIRE - harness to fuel sender, used before tractor sn. 8980051

1шт.

27

D75028

ELECTRICAL WIRE

HARNESS - fuel and filter restriction senders, used on tractor SN. 8980051 and after, no longer used, order D88557

1шт.

28

D88557

ELECTRICAL WIRE

HARNESS - fuel and filter restriction senders

1шт.

29

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NC

1шт.

30

D63293

SENDER UNIT

SENDER - fuel level

1шт.

31

A11822

GASKET

- fuel sender

1шт.

32

D75465

SCREW,#10 - 32 x 5/8"

- special sealing

4-5шт.

33

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

- pan head, No. 10 - 32 NF x 9/16", ground, if used

1шт.

34

D83885

WASHER

- copper, ground screw, if used

1шт.

35

S113435

SWITCH

- neutral start

1шт.

36

REF

INSTRUCTION

HARNESS - main, see Figure 76 or 78

1шт.
