(89.800.AA[29]) - VAR - 734624 - ATTACHMENT, BUCKET (1.3M³ X 2100MM)

Запчасти Case 321F (89.800.AA[29]) - VAR - 734624 - ATTACHMENT, BUCKET (1.3M³ X 2100MM) (89) - TOOLS

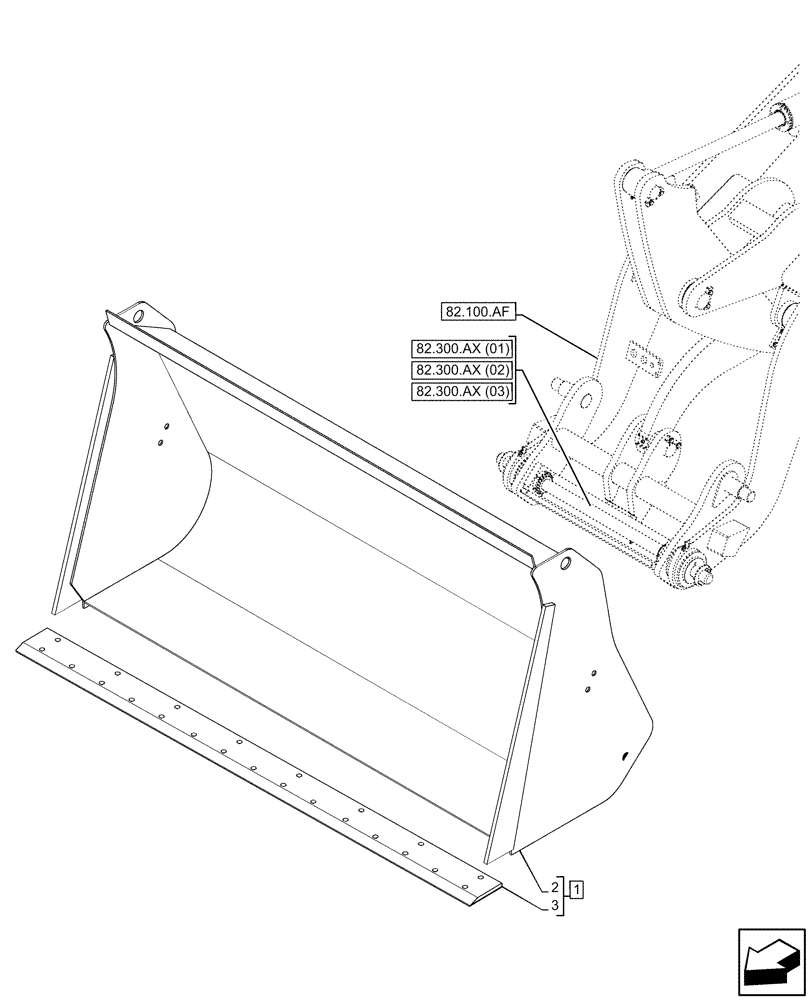

Схема запчастей Case 321F - (89.800.AA[29]) - VAR - 734624 - ATTACHMENT, BUCKET (1.3M³ X 2100MM) (89) - TOOLS
82.100.af
82.300.ax (02)
2
82.300.ax (03)
1
82.300.ax (01)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47639728

BUCKET

Bucket 1.3M3x2100mm for SSL Coupler, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

47606740

CUTTING EDGE

2100mm, 23 Holes for Fixing Screws

1шт.

Выбрано товаров: 3
