Запчасти Case 321F (35.525.AA[01]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

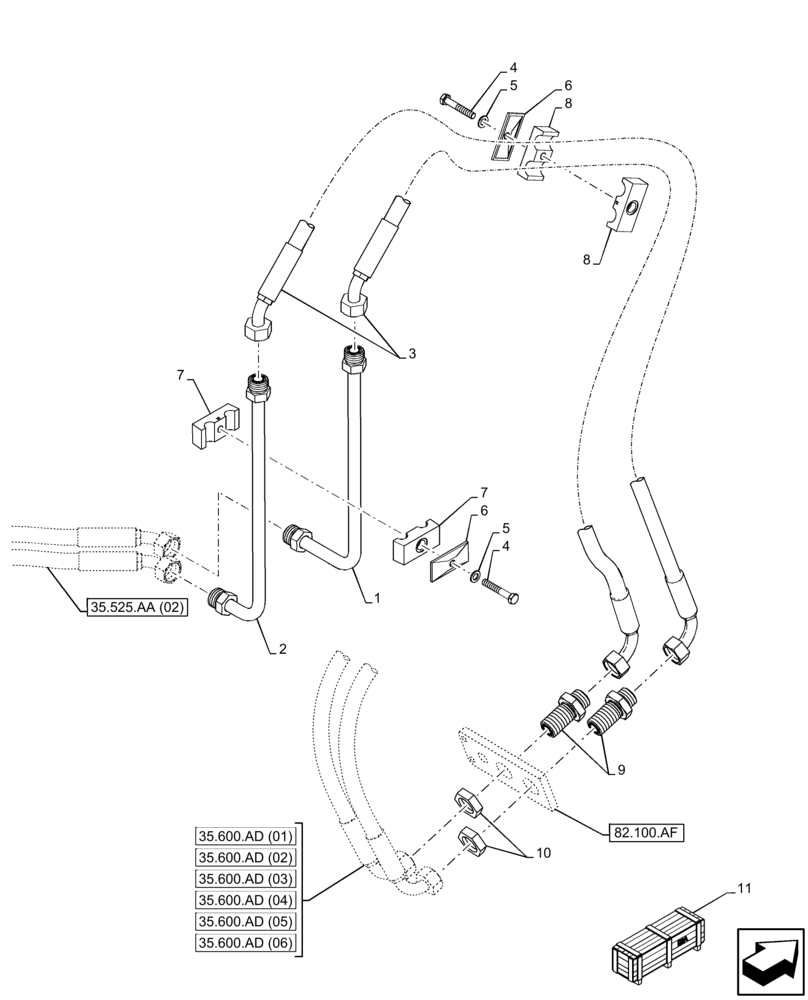

Схема запчастей Case 321F - (35.525.AA[01]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS
1
35.600.ad (02)
6
7
9
6
3
11
8
5
35.600.ad (04)
35.600.ad (05)
35.525.aa (02)
2
35.600.ad (01)
4
4
35.600.ad (06)
5
10
8
7
35.600.ad (03)
82.100.af

Артикул

Название

Примечание

Количество

1

47613943

HYD TUBE

3RD Function

1шт.

2

47460946

HYD TUBE

3RD Function

1шт.

3

47461097

HYDRAULIC HOSE

3RD Function

2шт.

4

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

5шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

900529

PLATE

5шт.

7

87000921

HOSE CLAMP

2шт.

8

1570971

CLAMP

3шт.

9

76088778

UNION

2шт.

10

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

11

47704686

CONSTRUCTION DIA

Hydraulic Standard Provision W80C, 321F Z Bar, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 12
