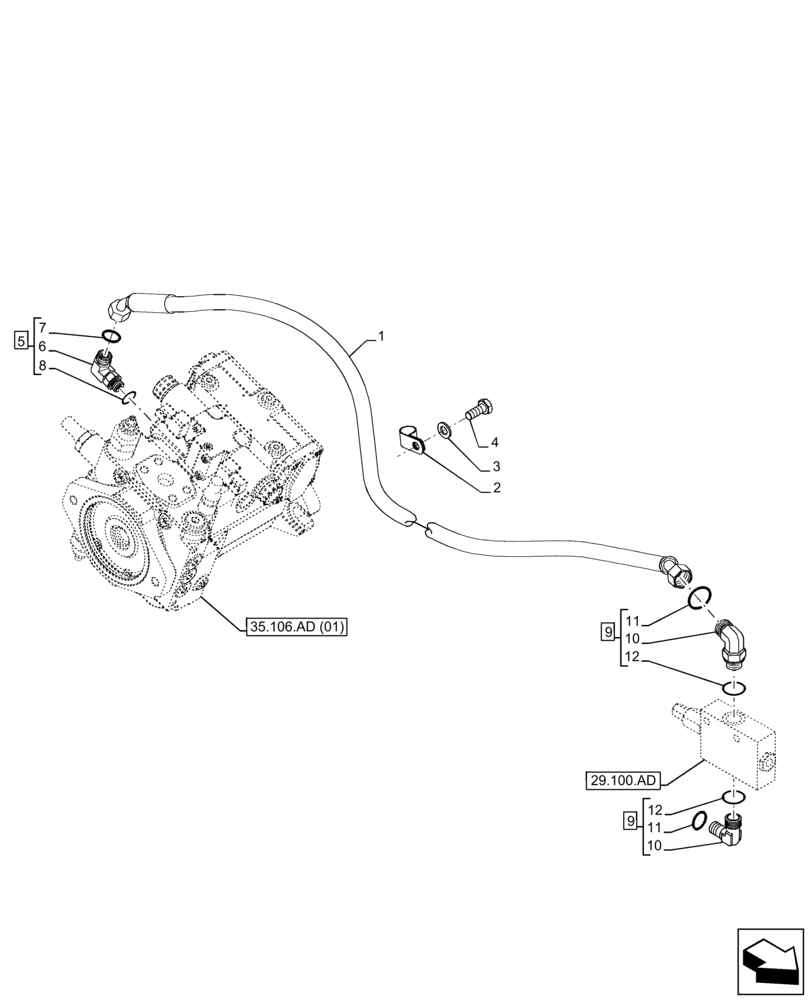

Запчасти Case 321F (29.100.AH[01]) - HYDROSTATIC PUMP, INCHING VALVE, LINE - END DATE 29 APRIL 2015 (29) - HYDROSTATIC DRIVE

1

47453090

HYDRAULIC HOSE

Main Pump to Inching Valve

1шт.

2

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

4

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

5

47127165

90 ELBOW

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

8

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

9

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

ASSY, Incl 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

2шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

12

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.
