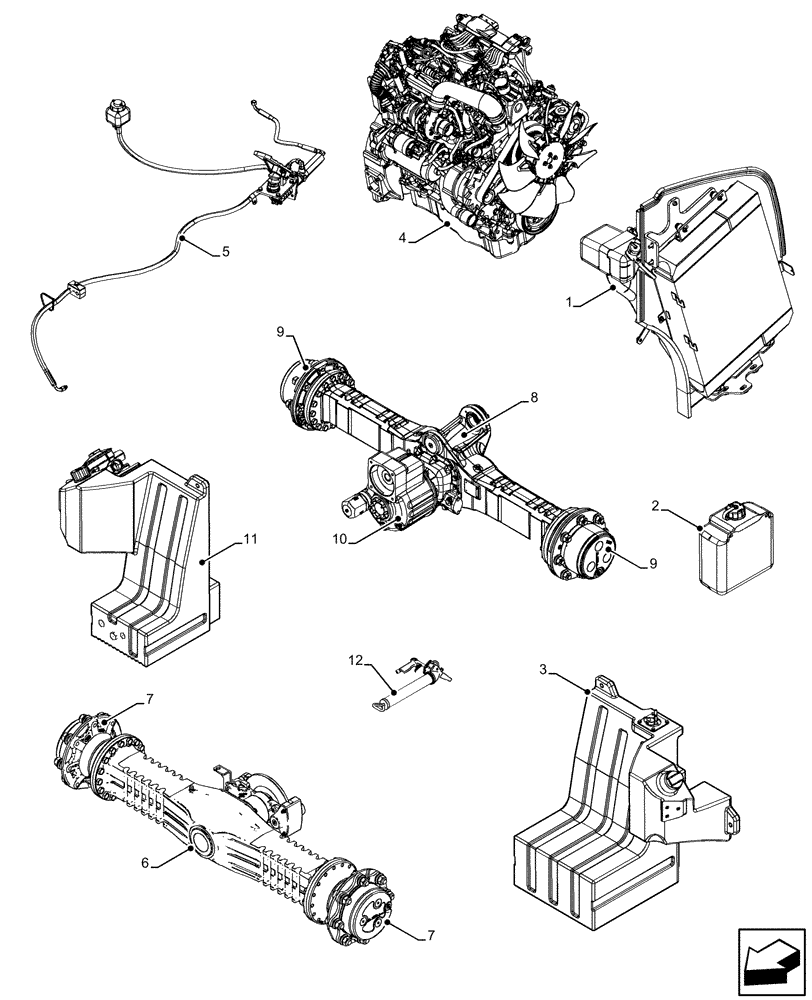

Запчасти Case 321F (05.100.03) - CAPACITIES (05) - SERVICE & MAINTENANCE

1

-

Cooling System (Qty in Liters), (3.4 US Gallons)

13шт.

Recommended Product: 50% CASE AKCELA PREMIUM ANTI-FREEZE (Conventional Coolant) fluid + 50% Water

1шт.

Recommended Product: 50% CASE AKCELA ACTIFULL OT® EXTENDED LIFE COOLANT (OAT Coolant) + 50% Water

1шт.

2

-

Windscreen Washer Reservoir (Qty in Liters), (0.5 US Gallons)

2шт.

Recommended Product: Water + Liquid

1шт.

3

-

Fuel Tank (Qty in Liters), (23.8 US Gallons)

86шт.

Recommended Product: Decanted, Filtered Diesel Fluid

1шт.

4

-

Engine Sump, Minimum (Qty in Liters), (5.3 US qt)

4.9шт.

4

-

Engine Sump, Maximum (Qty in Liters), (7.4 US qt)

7шт.

Recommended Product: CASE AKCELA UNITEK NO. 1™ SBL CJ-4 SAE 10W-40

1шт.

Recommended Product: CASE AKCELA UNITEK NO. 1™ SSL CJ-4 SAE 10W-40 (Cold Weather)

1шт.

5

-

Brake Control Circuit (Qty in Liters), (1.1 US qt)

1шт.

LHM Fluid

1шт.

6

-

Front Axle Differential (Qty in Liters), (2.1 US Gallons)

8шт.

Recommended Product: CASE AKCELA GEAR 135 H EP LS

1шт.

7

-

Front Axle Reduction Gear (Qty in Liters), (0.2 US Gallons)

1шт.

Recommended Product: CASE AKCELA GEAR 135 H EP LS

1шт.

8

-

Rear Axle Differential (Qty in Liters), (2.1 US Gallons)

8шт.

Recommended Product: CASE AKCELA GEAR 135 H EP LS

1шт.

9

-

Rear Axle Reduction Gear (Qty in Liters), (0.2 US Gallons)

1шт.

Recommended Product: CASE AKCELA GEAR 135 H EP LS

1шт.

10

-

Rear Axle gearbox (Qty in Liters), (0.2 US Gallons)

1шт.

Recommended Product: CASE AKCELA GEAR 135 H EP LS

1шт.

11

-

Hydraulic System and Transmission, Reservoir Capacity (Qty in Liters), (10.6 US Gallons)

40шт.

Recommended Product: CASE AKCELA HYDRAULIC EXCAVATOR FLUID

1шт.

Recommended Product: CASE AKCELA HY-TRAN® ULTRA™ SSL TRANSMISSION OIL (Low Temperature)

1шт.

11

-

Hydraulic System and Transmission, Total System Capacity (Qty in Liters), (14 US Gallons)

53шт.

Recommended Product: CASE AKCELA HYDRAULIC EXCAVATOR FLUID

1шт.

Recommended Product: CASE AKCELA HY-TRAN® ULTRA™ SSL TRANSMISSION OIL (Low Temperature)

1шт.

12

-

Grease Fitting, as Required

1шт.

Recommended Product: TUTELA MULTI-PURPOSE EP GREASE 251H, GR-9

1шт.
