(89.800.AA[39]) - VAR - 734646 - ATTACHMENT, BUCKET, 4 IN 1 (1M³ X 2100MM)

Запчасти Case 321F (89.800.AA[39]) - VAR - 734646 - ATTACHMENT, BUCKET, 4 IN 1 (1M³ X 2100MM) (89) - TOOLS

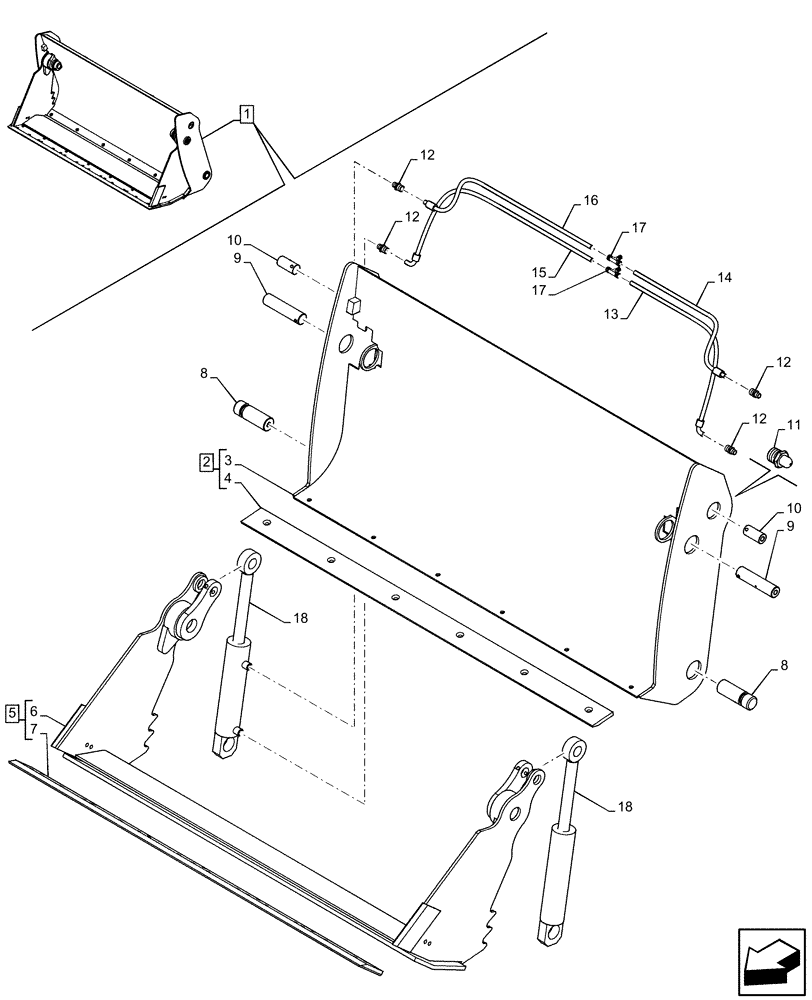

Схема запчастей Case 321F - (89.800.AA[39]) - VAR - 734646 - ATTACHMENT, BUCKET, 4 IN 1 (1M³ X 2100MM) (89) - TOOLS
4
11
12
10
18
17
9
12
12
2
9
3
1
5
14
15
16
17
8
18
12
7
8
6
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47680847

4 IN 1 BUCKET

1.0M3x2100mm for SSL Coupler, ASSY, Incl 2 - 19

1шт.

2

47645161

BUCKET CYLINDER

2шт.

3

NSS

NOT SOLD SEPARAT

4 IN 1 Bucket

1шт.

4

47645230

DOZER BLADE

2100mm, 6 Holes for Fixing Screws

1шт.

5

47645026

4 IN 1 BUCKET

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

4 IN 1 Bucket, Incl in 5

1шт.

7

47606740

CUTTING EDGE

2100mm, 23 Holes for Fixing Screws

1шт.

8

47645924

PIN

2шт.

9

47645038

PIN

2шт.

10

47645157

PIN

2шт.

11

47648301

LUBE NIPPLE

1шт.

12

47645168

NIPPLE

4шт.

13

47648311

HYD TUBE

970mm

1шт.

14

47648310

HYD TUBE

820mm

1шт.

15

47648309

HYD TUBE

1220mm

1шт.

16

47648302

HYD TUBE

1080mm

1шт.

17

47645174

FITTING

2шт.
