(89.800.AA[08]) - VAR - 734581 - ATTACHMENT, BUCKET, HIGH TIP (1.0M³ X 2050MM)

Запчасти Case 321F (89.800.AA[08]) - VAR - 734581 - ATTACHMENT, BUCKET, HIGH TIP (1.0M³ X 2050MM) (89) - TOOLS

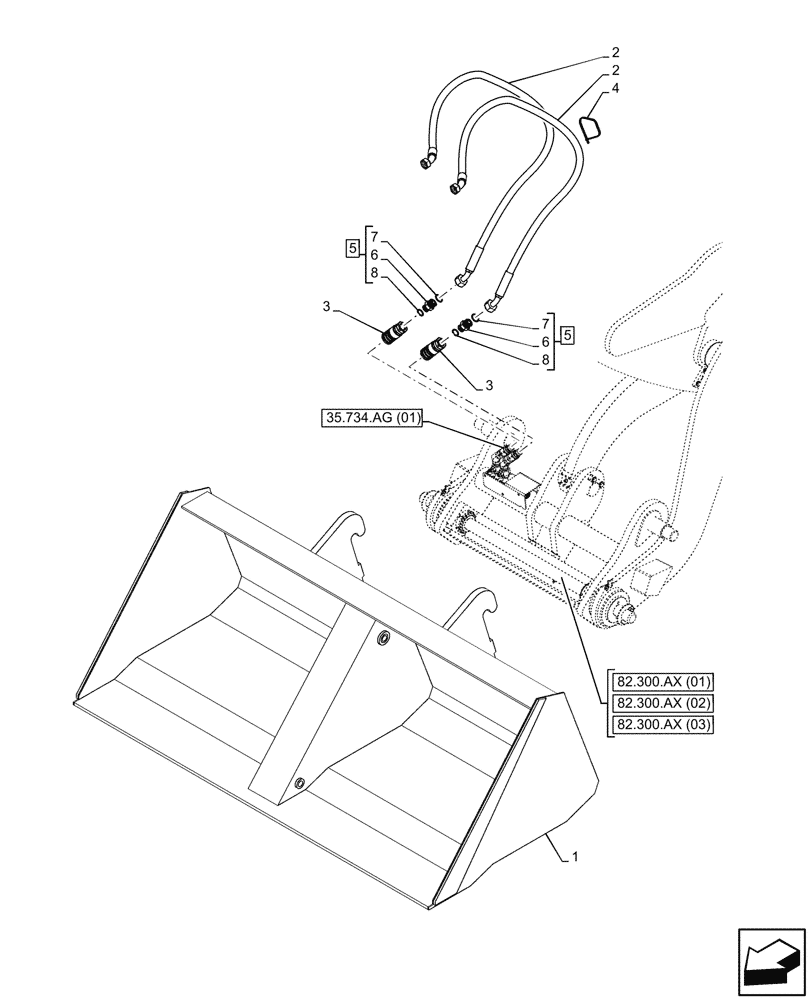

Схема запчастей Case 321F - (89.800.AA[08]) - VAR - 734581 - ATTACHMENT, BUCKET, HIGH TIP (1.0M³ X 2050MM) (89) - TOOLS
82.300.ax (01)
4
2
6
6
7
3
8
2
5
8
3
7
5
1
82.300.ax (03)
35.734.ag (01)
82.300.ax (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47530613

BUCKET

High Tip 1.0M3 x 2050mm

1шт.

2

47818452

HYDRAULIC HOSE

2шт.

3

47786368

COUPLING, QUICK, FEM

2шт.

4

4982514

CABLE TIE,188mm L

1шт.

5

87351379

HYD CONNECTOR

ASSY, Incl 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 8
