Запчасти Case 321F (55.024.AH[03]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, VALVE, COMPONENTS (55) - ELECTRICAL SYSTEMS

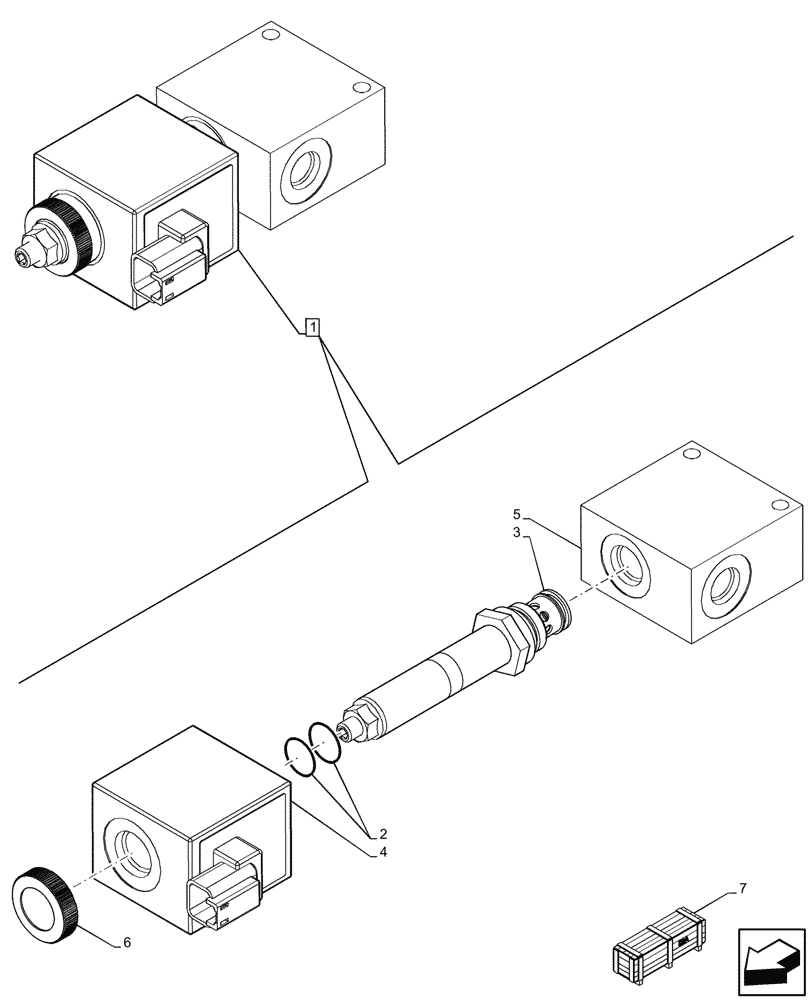

Схема запчастей Case 321F - (55.024.AH[03]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, VALVE, COMPONENTS (55) - ELECTRICAL SYSTEMS
4
5
7
2
6
1
3

Артикул

Название

Примечание

Количество

1

47527624

HYDRAULIC VALVE

Creep Speed, ASSY, Incl 2 - 7

1шт.

2

47747447

O-RING

2шт.

3

47631519

SOLENOID VALVE

1шт.

4

47631520

COIL

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

6

47747446

NUT

1шт.

7

47705685

CONSTRUCTION DIA

Creep Speed, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 8
