Запчасти Case 321F (55.024.AH[02]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, VALVE (55) - ELECTRICAL SYSTEMS

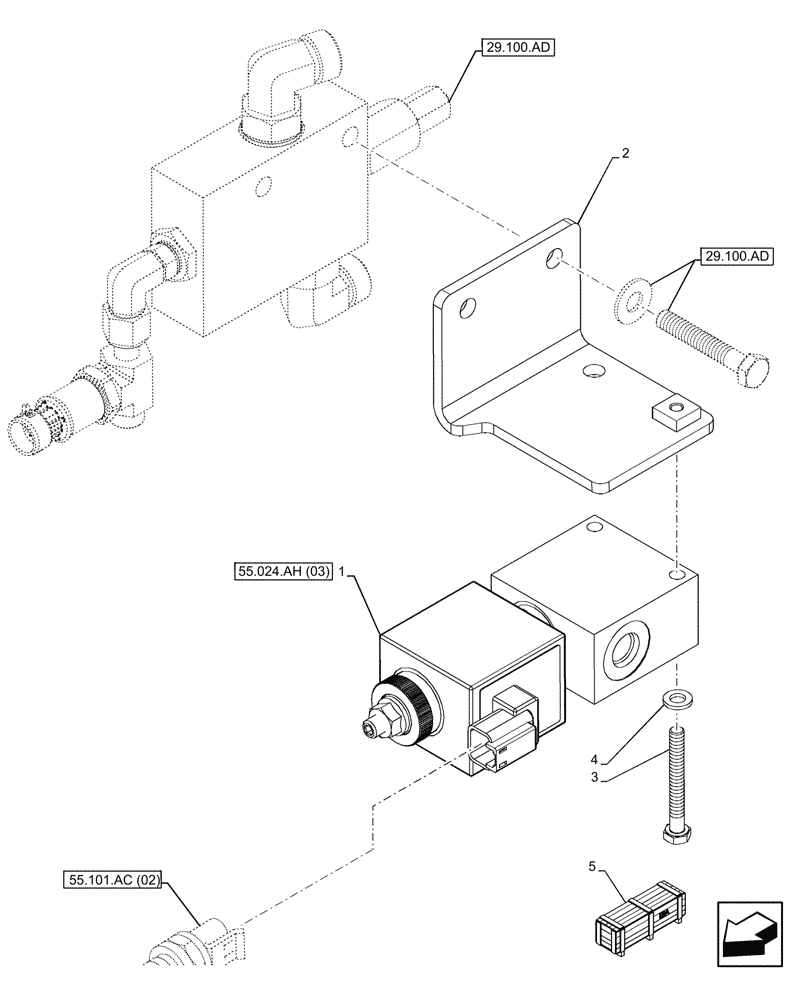

Схема запчастей Case 321F - (55.024.AH[02]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, VALVE (55) - ELECTRICAL SYSTEMS
29.100.ad
4
3
5
1
2
55.024.ah (03)
55.101.ac (02)
29.100.ad

Артикул

Название

Примечание

Количество

1

47527624

HYDRAULIC VALVE

Creep Speed, ASSY

1шт.

2

47526966

PLATE

1шт.

3

86556136

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

47705685

CONSTRUCTION DIA

Creep Speed, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

5

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 8
