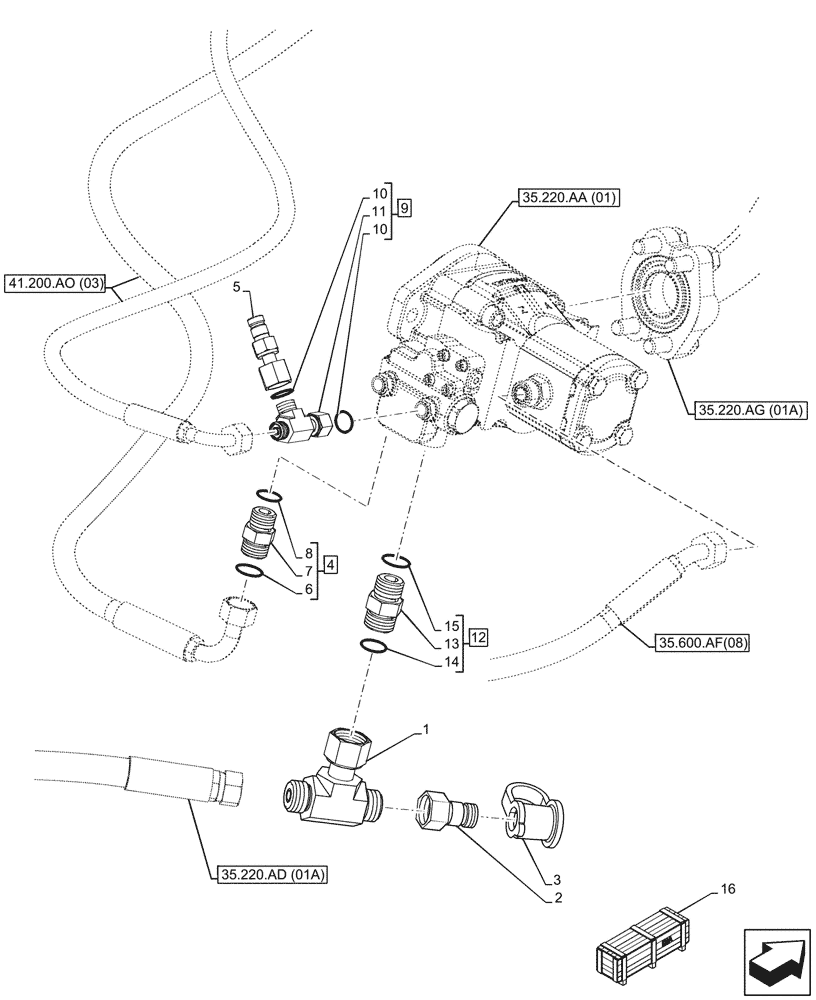

Запчасти Case 321F (41.200.BO[02A]) - VAR - 732003, 732004, 734591, 734649, 734650 - LINES, AUXILIARY STEERING - BEGIN DATE 30 APRIL 2015 (41) - STEERING

1

87681197

HYD CONNECTOR

, Years: -14-OCT-15

1шт.

1

87564726

TEE,1-14 ORFS x 1-1/8' ORFS

, Start Year: 15-OCT-15

1шт.

2

324201A1

PLUG

1шт.

3

H434163

DUST CAP

1шт.

4

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY Incl 6 - 8

1шт.

5

76085228

BREAKER POINTS

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 10, 11

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

12

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 13 - 15, Start Year: 15-OCT-15

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 1, Start Year: 15-OCT-15

1шт.

14

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

, Start Year: 15-OCT-15

1шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

, Start Year: 15-OCT-15

1шт.

16

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
