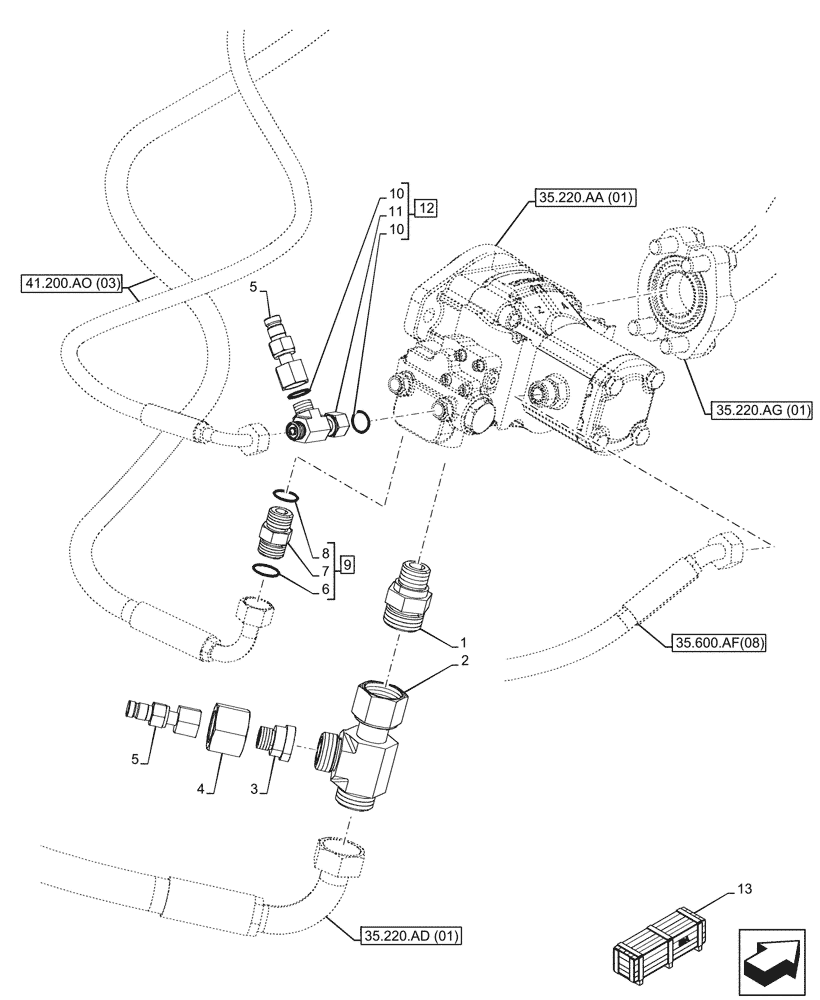

Запчасти Case 321F (41.200.BO[02]) - VAR - 732003, 732004, 734591, 734649, 734650 - LINES, AUXILIARY STEERING - END DATE 29 APRIL 2015 (41) - STEERING

1

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

2

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.

3

87026878

HYD CONNECTOR,11/16-16 x 1-3/16-12 ORFS

1шт.

4

86639096

TUBE NUT,1-3/16'-12 ORFS x 26.5mm Thk

1шт.

5

76085228

BREAKER POINTS

2шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY Incl 6 - 8

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 12

1шт.

12

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 10, 11

1шт.

13

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
