Запчасти Case 321F (35.723.AA[02]) - BUCKET CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

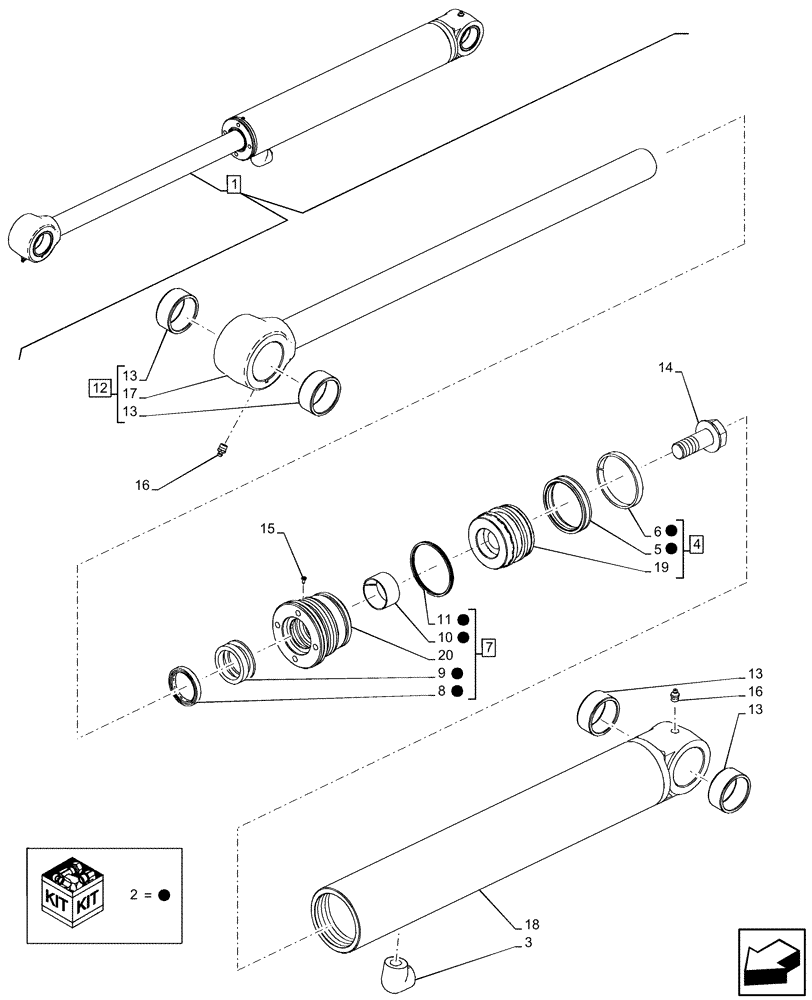

Схема запчастей Case 321F - (35.723.AA[02]) - BUCKET CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
1
17
2
13
13
13
2
15
6
2
4
2
5
12
3
18
20
2
2
11
16
13
16
10
2
14
8
7
9
19

Артикул

Название

Примечание

Количество

1

47448261

HYDRAULIC CYLINDER

ASSY, Incl 2 - 20

1шт.

2

47456466

KIT

Incl 5, 6, 8 - 11

1шт.

3

D27793

FITTING,7/8" - 14 ORB x 22.4mm ID, 90 Degree

1шт.

4

47456469

PISTON

ASSY, Incl 5, 6, 19

1шт.

5

87715783

SEAL,76.45mm ID x 88.9mm OD

1шт.

6

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

7

47456471

PISTON

ASSY, Incl 8 - 11, 20

1шт.

8

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

9

1542877C1

SEAL KIT,57.2mm Rod

1шт.

10

1346476C1

RING,57.15mm ID, Int

1шт.

11

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

1шт.

12

47454255

ROD

ASSY, Incl 13 (Qty 2), 17

1шт.

13

84289063

BUSHING

4шт.

14

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

NSS

NOT SOLD SEPARAT

Rod, incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Tube,Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Gland, Incl in 7

1шт.

Выбрано товаров: 20
