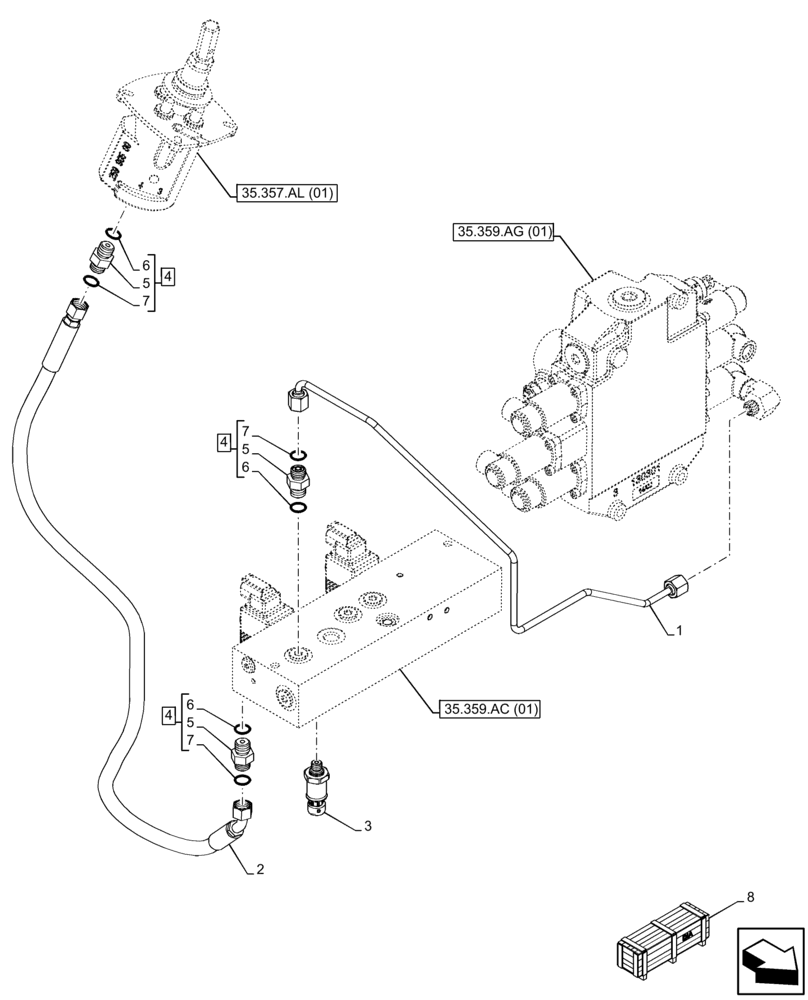

Запчасти Case 321F (35.701.AD[01]) - VAR - 782734 - LOADER BUCKET, CONTROL, HYD. LINE (35) - HYDRAULIC SYSTEMS

1

47417948

HYD TUBE

Manifold A1 to Pilot Valve

1шт.

2

47417949

HYDRAULIC HOSE

1шт.

3

84597744

SENSOR

Pressure

1шт.

4

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

3шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

3шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

8

47700233

CONSTRUCTION DIA

Return to Dig, W70C, W80C, 221F, 321F Z Bar, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
