Запчасти Case 321F (35.600.AD[11]) - VAR - 732002, 732003, 732005, 734648, 734649, 734651 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

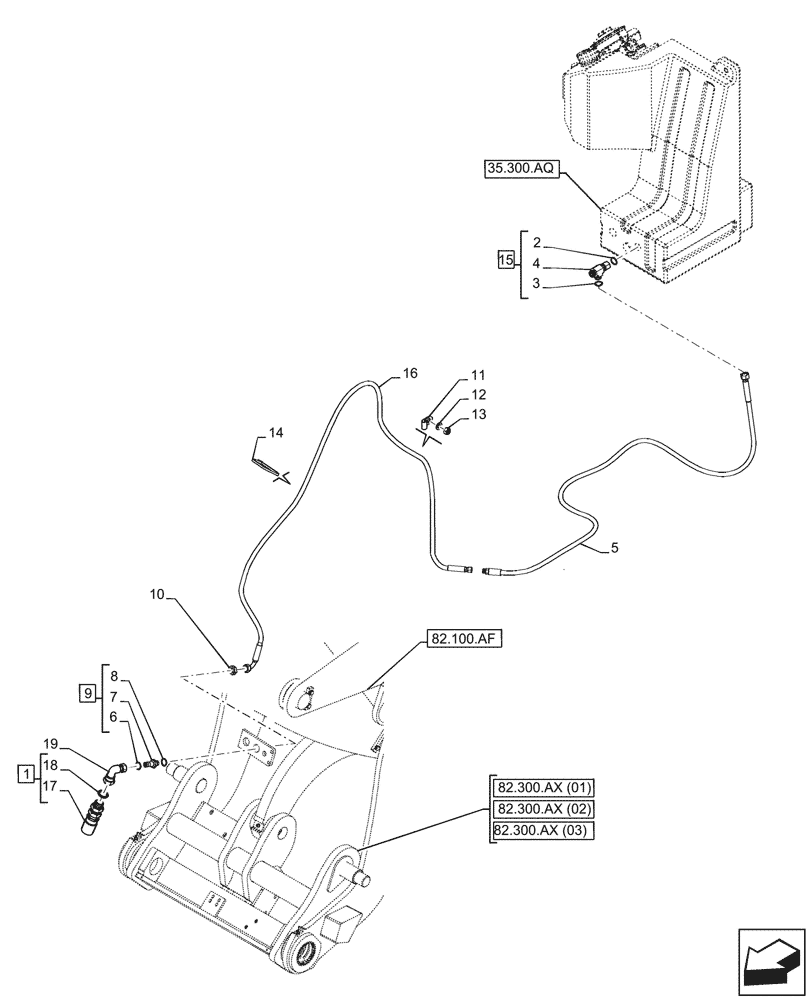

Схема запчастей Case 321F - (35.600.AD[11]) - VAR - 732002, 732003, 732005, 734648, 734649, 734651 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS
82.300.ax (01)
9
1
5
12
7
3
18
10
11
16
14
13
8
17
4
19
2
6
15
82.300.ax (03)
82.300.ax (02)
35.300.aq
82.100.af

Артикул

Название

Примечание

Количество

1

87305110

COUPLING, QUICK, FEM

ASSY, Incl 17, 18

1шт.

2

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

O Ring, Incl in 15

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

5

47686922

HYDRAULIC HOSE

Drain

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

O Ring, Incl in 9

1шт.

9

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 6 - 8

1шт.

10

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

11

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

12

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

13

337475

NUT,M12, Cl 10

1шт.

14

4982514

CABLE TIE,188mm L

3шт.

15

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 2, 3, 17

1шт.

16

47483332

HOSE

Drain

1шт.

17

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 1

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

47691088

90 ELBOW

1шт.

Выбрано товаров: 19
