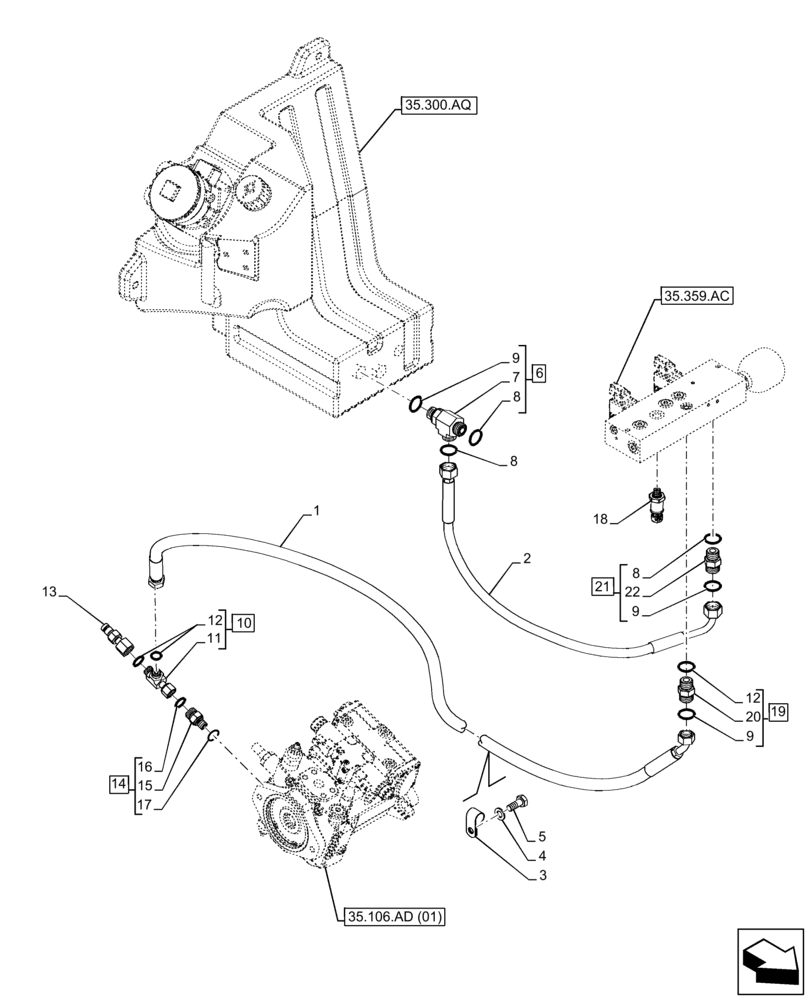

Запчасти Case 321F (35.106.AO) - HYDROSTATIC PUMP, MANIFOLD VALVE, TANK, LINE (35) - HYDRAULIC SYSTEMS

1

47421405

HYDRAULIC HOSE

Pilot Valve P to Main Pump

1шт.

2

47421403

HYDRAULIC HOSE

Oil Tank to Pilot Valve T

1шт.

3

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

6

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 7, 8 (Qty 1), 9 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

10

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 11, 12 (Qty 2)

1шт.

11

NSS

NOT SOLD SEPARAT

Union tee, Incl in 10

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

76085228

BREAKER POINTS

1шт.

14

84593999

HYD CONNECTOR,11/16-16 ORFS, M12 x 1.5 ORB

ASSY, Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

18

84597744

SENSOR

1шт.

19

87672176

HYD CONNECTOR

ASSY, Incl 9 (Qty 1), 12 (Qty 1), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

21

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 22

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.
