Запчасти Case 321F (35.106.AD[06]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

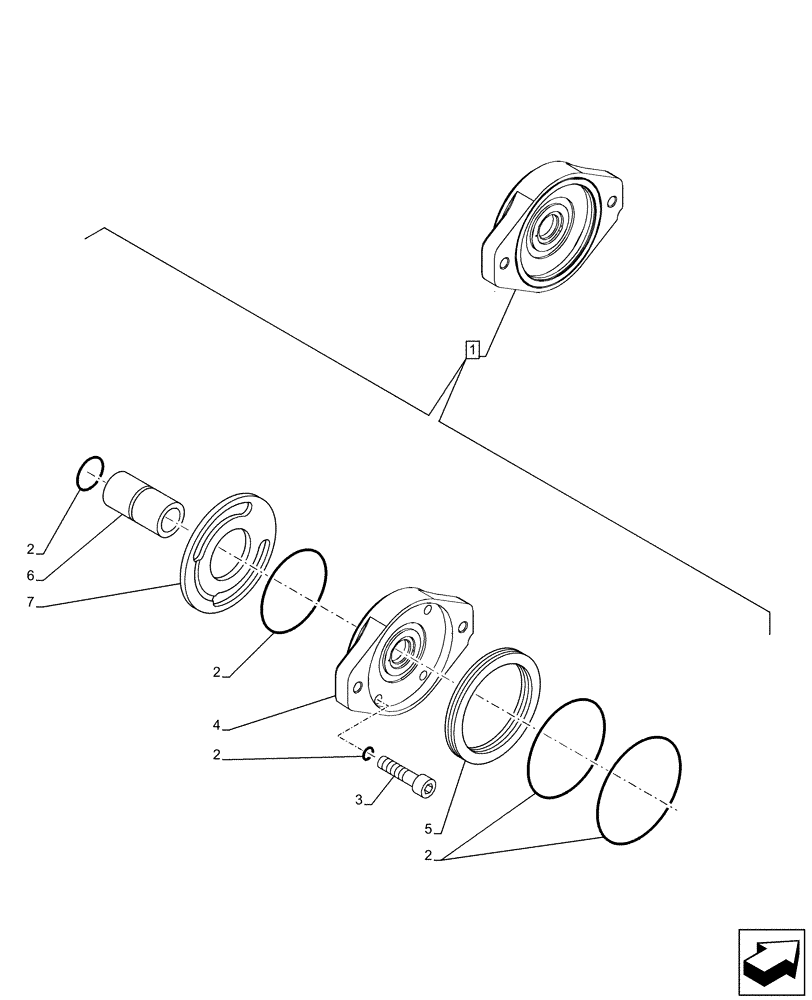

Схема запчастей Case 321F - (35.106.AD[06]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
2
5
6
1
4
2
2
7
3

Артикул

Название

Примечание

Количество

1

47628202

PUMP

Gear Internal, ASSY, Incl 2 - 7

1шт.

2

87758186

SEAL KIT

1шт.

Include also Gaskets in Figure 35.106.AD (03), (04), (05), (07), (08), (09), (10)

1шт.

3

14442234

SCREW,Flat Csk Hd, M8 x 1.25 x 30mm, Cl 10.9

4шт.

4

NSS

NOT SOLD SEPARAT

Flange, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Disk, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

Выбрано товаров: 8
