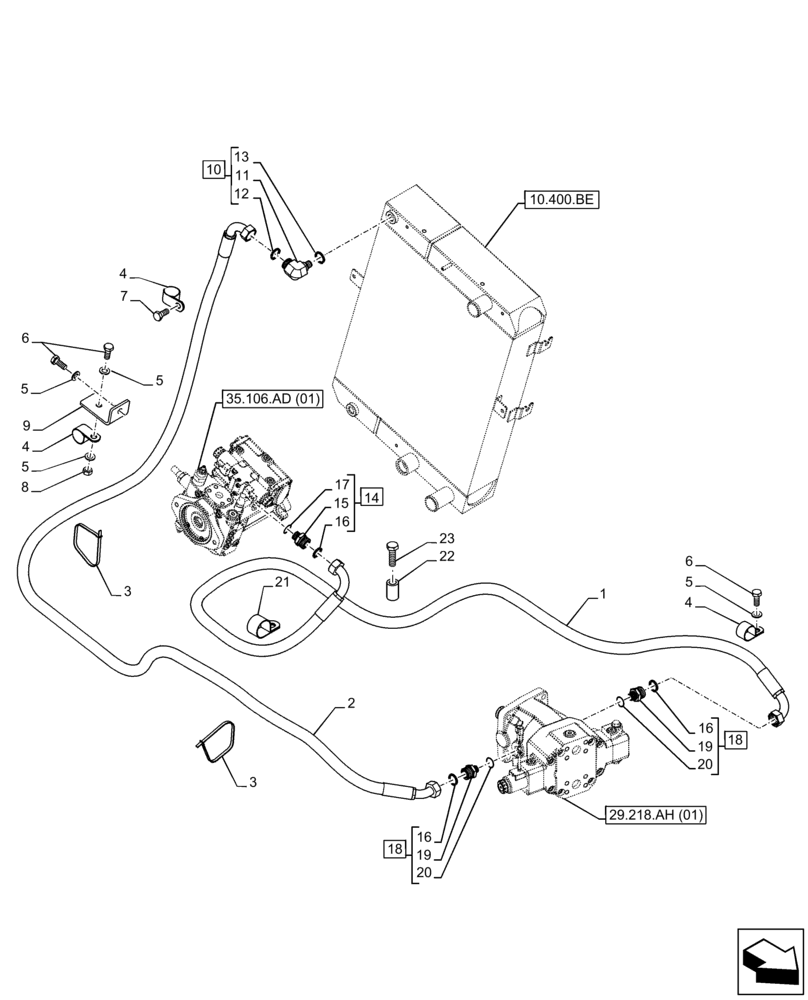

Запчасти Case 321F (29.204.AB[01]) - HYDROSTATIC MOTOR, PUMP, COOLER, LINE (29) - HYDROSTATIC DRIVE

1

47449724

HYDRAULIC HOSE

Main Pump to Hydrostatic Motor

1шт.

2

47611883

HYDRAULIC HOSE

Radiator to Hydraulic Motor, Serial Range: -NFHP00138

1шт.

3

4982514

CABLE TIE,188mm L

, Serial Range: -NFHP00138

3шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

8шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

6

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

7

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

1шт.

9

47502493

BRACKET

1шт.

10

47468131

90 ELBOW

ASSY, Incl 11 - 13, Serial Range: -NFHP00138

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

ASSY, Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

17

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

18

5185526

HYD CONNECTOR

ASSY, Incl 16 (Qty 1), 19 (Qty 1), 20 (Qty 1), Serial Range: -NFHP00138

2шт.

18

5185526

HYD CONNECTOR

ASSY, Incl 16 (Qty 1), 19 (Qty 1), 20 (Qty 1), Start Serial: NFHP00139

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

2шт.

20

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

21

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

22

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

23

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.
