Запчасти Case 321F (29.100.AH[02]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, HYD. LINE (29) - HYDROSTATIC DRIVE

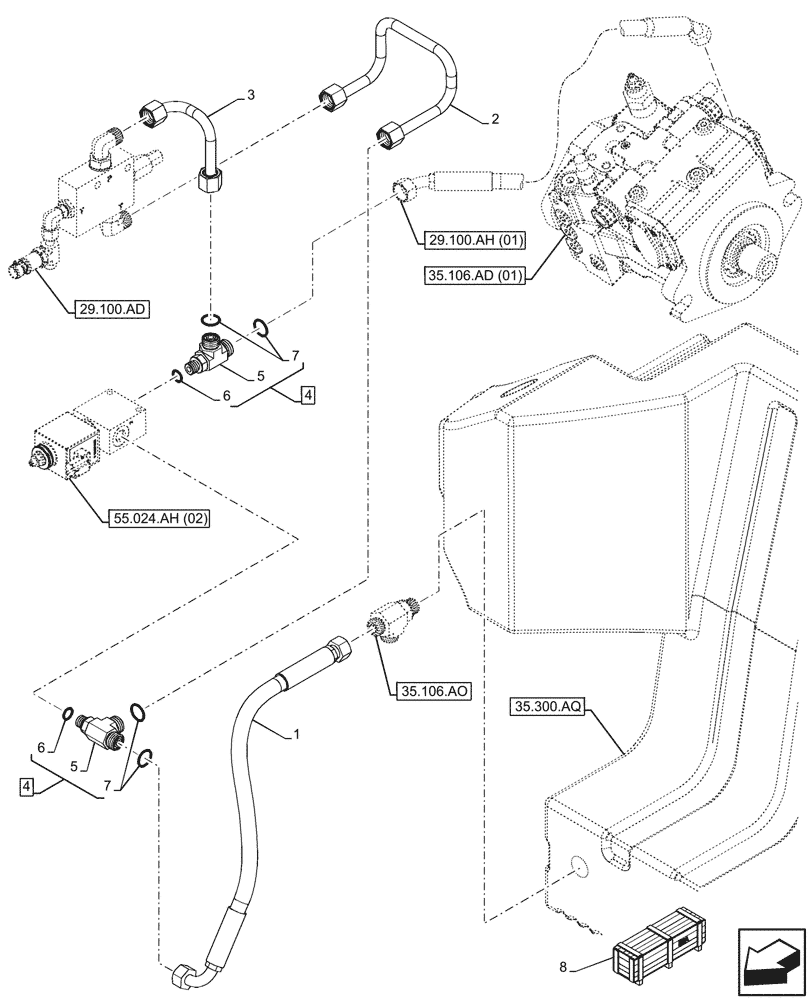

Схема запчастей Case 321F - (29.100.AH[02]) - VAR - 732003, 732004, 732005, 732006, 734583, 734649, 734650, 734651, 734652 - SPEED LIMITER, HYD. LINE (29) - HYDROSTATIC DRIVE
35.300.aq
6
2
8
1
4
5
7
5
6
7
55.024.ah (02)
4
3
35.106.ad (01)
29.100.ah (01)
35.106.ao
29.100.ad

Артикул

Название

Примечание

Количество

1

47528775

HYDRAULIC HOSE

Oil Reservoir to Inching Valve Line

1шт.

2

47526981

HYD TUBE

Inching Valve to Oil Reservoir Line

1шт.

3

47526982

HYD TUBE

Inching Valve to Main Pump Line

1шт.

4

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

2шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

8

47705685

CONSTRUCTION DIA

Creep Speed, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

8

47704938

CONSTRUCTION DIA

High Flow, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 11
