(10.216.BA[01A]) - FUEL TANK, LINES - END DATE 28 FEBRUARY 2017

Запчасти Case 321F (10.216.BA[01A]) - FUEL TANK, LINES - END DATE 28 FEBRUARY 2017 (10) - ENGINE

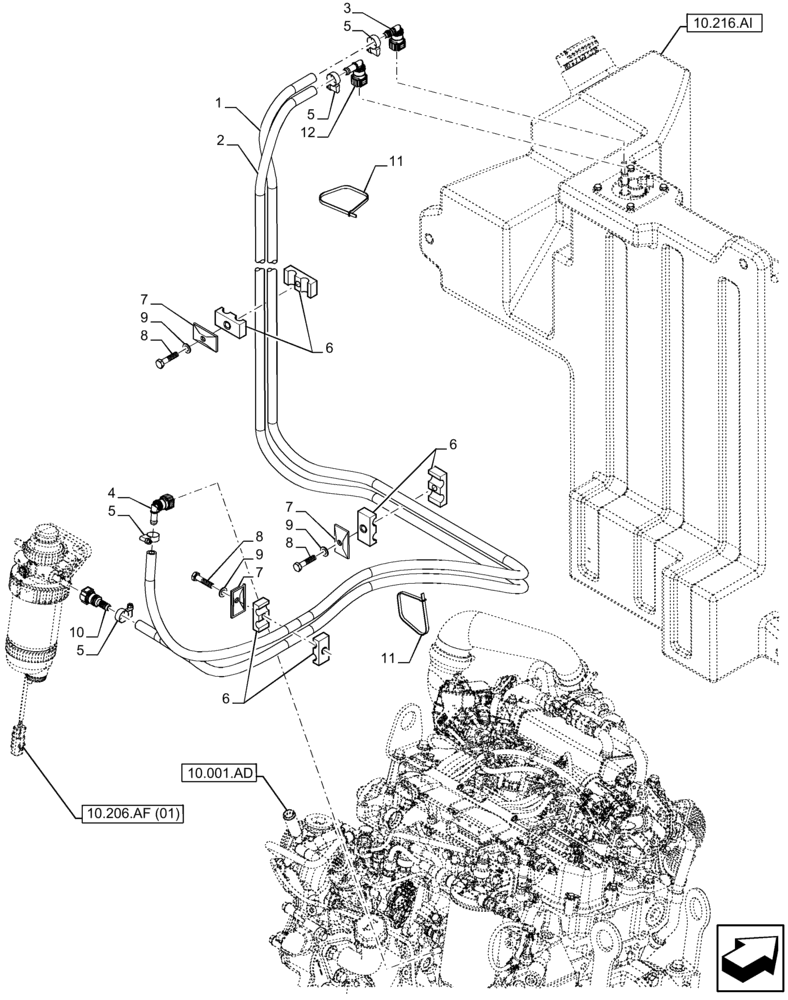

Схема запчастей Case 321F - (10.216.BA[01A]) - FUEL TANK, LINES - END DATE 28 FEBRUARY 2017 (10) - ENGINE
5
5
9
8
8
6
2
7
1
4
5
6
3
6
9
7
11
11
9
10
10.206.af (01)
8
5
7
12
10.216.ai
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47428599

FLEXIBLE HOSE

2750mm, Delivery

1шт.

2

47428600

FLEXIBLE HOSE

2600mm, Return

1шт.

3

84367132

FITTING,5/16'

Fuel, Hose, Delivery

1шт.

4

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

Fuel, Hose, Delivery

1шт.

5

773927

HOSE CLAMP

D12

4шт.

6

971587

CLAMP

D16

4шт.

7

773187

PLATE

4шт.

8

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

4шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

84387763

FITTING

Fuel, Hose, Return

1шт.

11

4982514

CABLE TIE,188mm L

188 x 4.8mm

2шт.

12

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

Fuel, Hose, Return

1шт.
