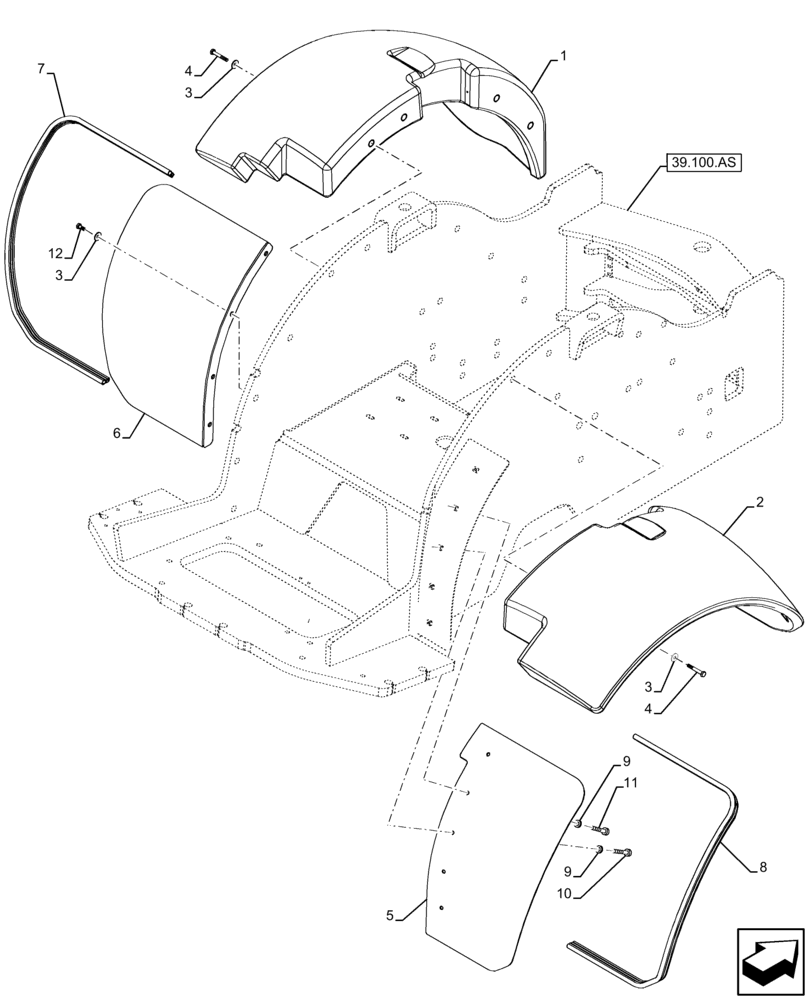

Запчасти Case 221F (90.116.AC[02]) - REAR FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47718471

FENDER

LH

1шт.

2

47718488

FENDER

RH

1шт.

3

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

12шт.

4

11107821

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

5

47497454

FLAP

RH

1шт.

6

47584429

FLAP

LH

1шт.

7

47480855

GASKET

LH

1шт.

8

47480857

GASKET

RH

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

10

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16mm Cl 10.9

4шт.

11

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

1шт.

12

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

4шт.
