(89.800.AA[18]) - VAR - 734602 - ATTACHMENT, BUCKET, HD (0.8M³ X 1900MM)

Запчасти Case 221F (89.800.AA[18]) - VAR - 734602 - ATTACHMENT, BUCKET, HD (0.8M³ X 1900MM) (89) - TOOLS

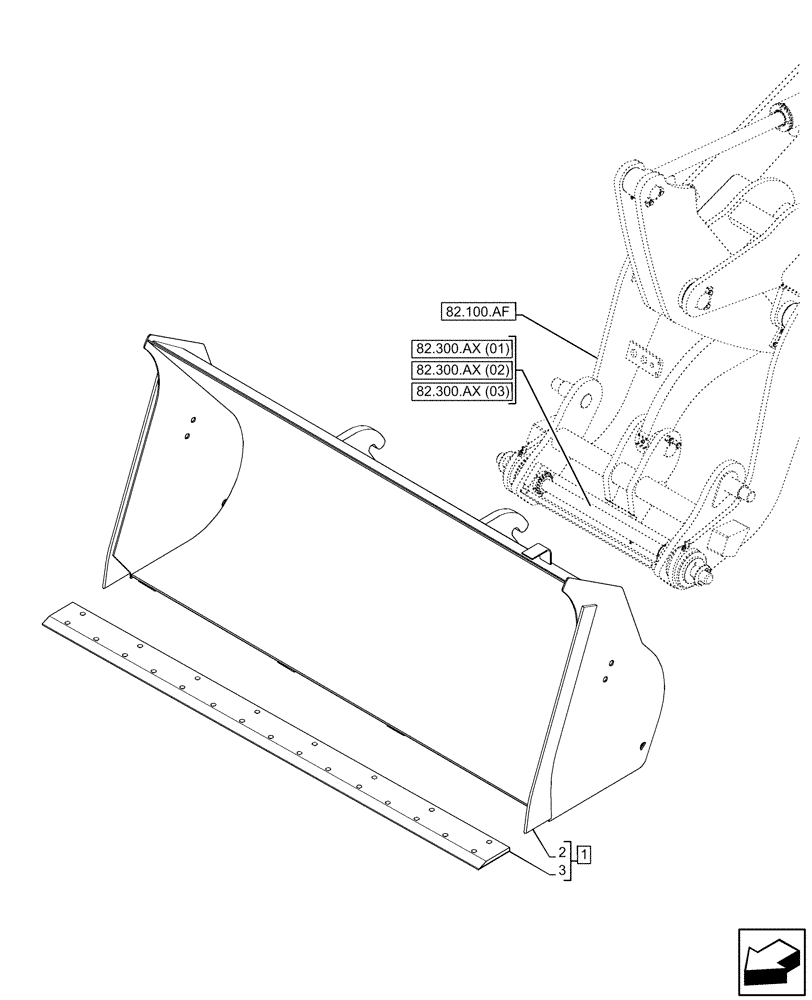

Схема запчастей Case 221F - (89.800.AA[18]) - VAR - 734602 - ATTACHMENT, BUCKET, HD (0.8M³ X 1900MM) (89) - TOOLS
2
1
82.100.af
3
82.300.ax (01)
82.300.ax (03)
82.300.ax (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47530644

BUCKET

HD 0.8M3x1900mm, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

2772868

CUTTING EDGE

1900mm, 24 holes for Fixing Screws

1шт.

Выбрано товаров: 3
