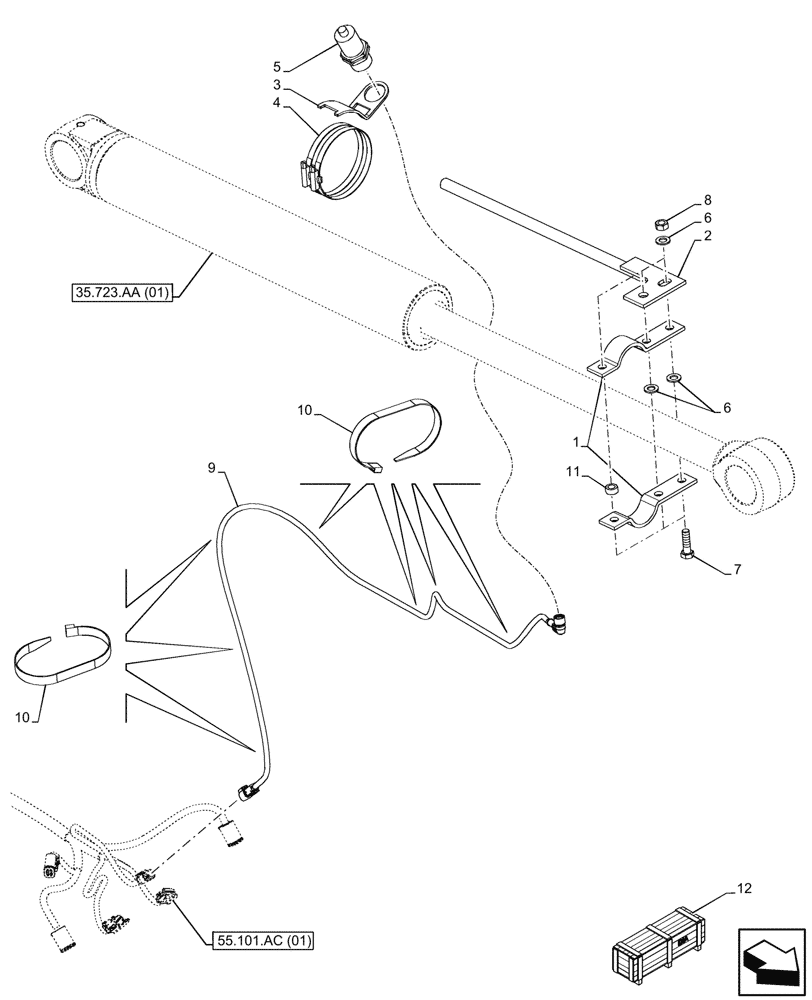

Запчасти Case 221F (55.415.AA) - VAR - 782734 - LOADER BUCKET, CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

1

6100022

PIPE CLAMP

2шт.

2

47538448

ROD

Shift Return To Dig

1шт.

3

6559474

HOLDER

Bracket initiator

1шт.

4

85817474

HOSE CLIP,100 - 120mm

2шт.

5

2186122

PRESSURE SWITCH

Pressure

1шт.

6

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

5шт.

7

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

3шт.

8

337475

NUT,M12, Cl 10

3шт.

9

87613690

WIRE HARNESS

Initiator RTD

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

11

47674581

SPACER

1шт.

12

47700233

CONSTRUCTION DIA

Return to Dig W70C, W80C, 221F, 321F Z Bar, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
