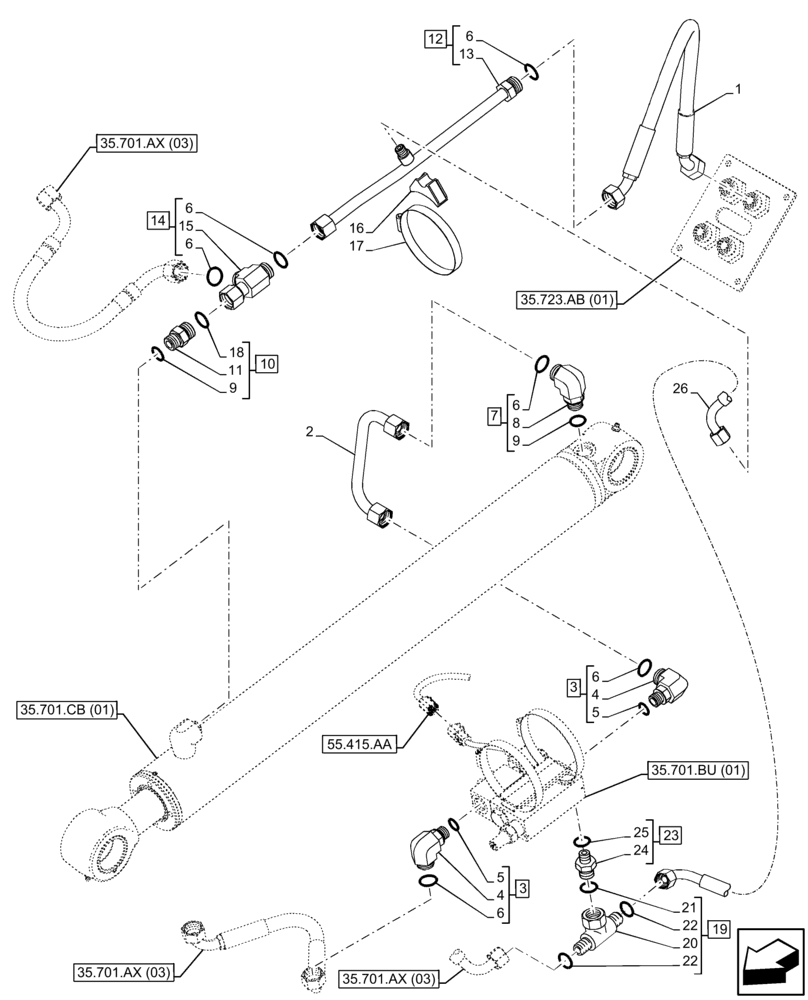

Запчасти Case 221F (35.701.AX[02]) - VAR - 734519 - LOADER ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

47745496

HYDRAULIC HOSE

Lift Line Rod

1шт.

2

47529509

HYD TUBE

Lift Bottom

1шт.

3

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 6 (Qty 1), 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 9 (Qty 1), 11, 18

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

47529487

HYD TUBE

Lift Rod, ASSY, Incl 6 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Lift Rod, Incl in 12

1шт.

14

84989850

3 WAY CONNECTION

ASSY, Incl 6 (Qty 2), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Union elbow, Incl in 14

1шт.

16

83901828

SPACER,R8.4mm, R45mm

1шт.

17

79083853

HOSE CLIP,110mm - 135mm, Worm Gear

Wormgear

1шт.

18

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

19

84364038

BRANCH TEE

ASSY, Incl 20 (Qty 1), 21 (Qty 1), 22 (Qty 2)

1шт.

20

NSS

NOT SOLD SEPARAT

Tee, Incl in 19

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 19

2шт.

23

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

1шт.

26

47627017

HYDRAULIC HOSE

Pilot Connection

1шт.
